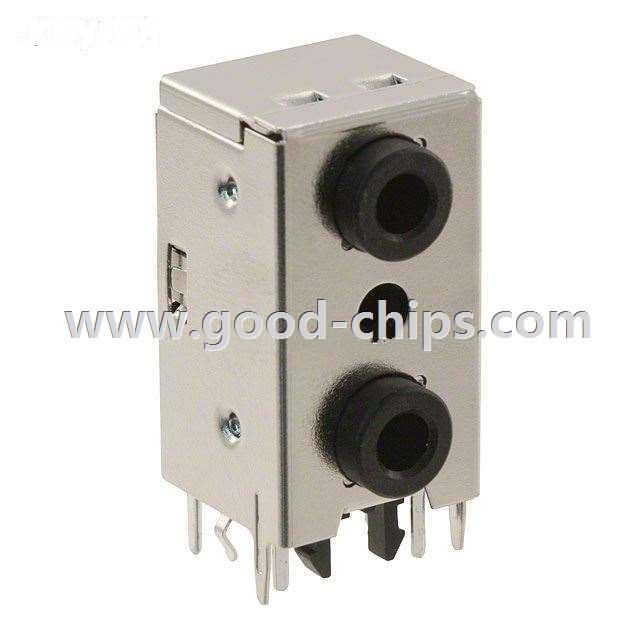

SJD-3512-33

SJD-3512-33
Manufacturer Part Number:SJD-3512-33
Manufacturer:
Product Category:Barrel - Audio Connectors
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack, Dual Stereo Connector Solder
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: SJD-3512-33 Datasheet
SJD-3512-33´s Parameters
Internal Part Number898-SJD-3512-33
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
RoHS InformationSJD-3512-33 Cert of Compliance
PCN Obsolescence/ EOLSJD-351(0,2)-xx 16/Aug/2013
CategoryConnectors, Interconnects
FamilyBarrel - Audio Connectors
ManufacturerCUI Inc.
Series-
PackagingBulk
Part StatusObsolete
Connector TypePhone Jack, Dual
GenderFemale
Signal LinesStereo
Industry Recognized Mating Diameter3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter0.142" (3.60mm)
Number of Positions/Contacts2 Sets of 3 Conductors, 6 Contacts
Internal Switch(s)Does Not Contain Switch
Mounting TypeThrough Hole, Right Angle
TerminationSolder
ShieldingShielded
FeaturesBoard Lock
Insulation Color-
Voltage - Rated16VDC
Current Rating300mA
Mating Length/Depth-
Contact Material - PlatingTin
Body Material-
Body ColorBlack
Includes1 pc - 1 Connector
Standard Package 100
Weight0.001 KG
ApplicationEmail for details
Replacement PartSJD-3512-33
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

SJD-3512-33 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of SJD-3512-33 is new and unused, you can buy SJD-3512-33 CUI Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for SJD-3512-33.
