Manufacturer Part Number: | SJ1-3525NG-PI |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | Barrel - Audio Connectors |
Available Quantity: | 25536 Pieces |
Unit Price: | Quote by Email |

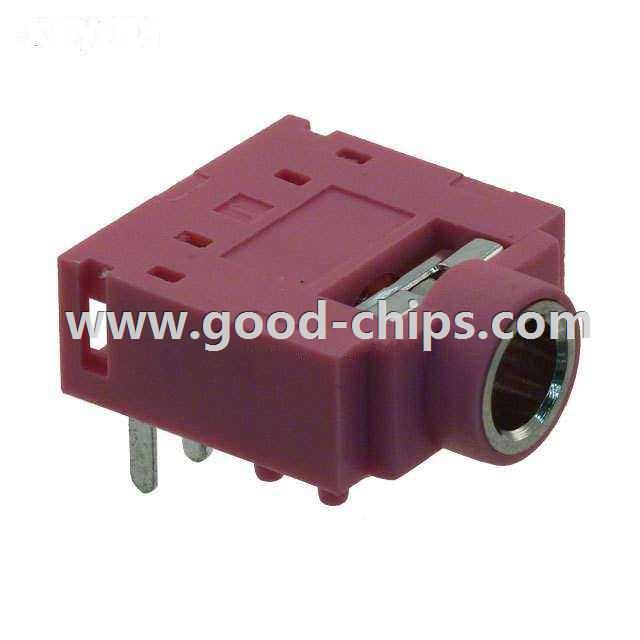

Description: | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo Connector Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SJ1-3525NG-PI Datasheet |
Internal Part Number | 898-SJ1-3525NG-PI | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | SJ1-352xNG Series Cert of Compliance | |
3D Model | SJ1-3525NG-PI | |
PCN Design/Specification | Multiple Devices Plating 19/Sep/2014 | |
Online Catalog | CUI | |
Category | Connectors, Interconnects | |
Family | Barrel - Audio Connectors | |
Manufacturer | CUI Inc. | |
Series | SJ1 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Phone Jack | |
Gender | Female | |
Signal Lines | Stereo | |
Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | |
Actual Diameter | 0.142" (3.60mm) | |
Number of Positions/Contacts | 3 Conductors, 5 Contacts | |
Internal Switch(s) | Two Switches | |
Mounting Type | Through Hole, Right Angle | |
Termination | Solder | |
Shielding | Unshielded | |
Features | - | |
Insulation Color | - | |
Voltage - Rated | 12VDC | |
Current Rating | 1A | |
Mating Length/Depth | 0.551" (14.00mm) | |
Contact Material - Plating | Tin | |
Body Material | - | |
Body Color | Pink | |
Includes | 1 pc - 1 Connector | |
Standard Package | 160 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SJ1-3525NG-PI | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SJ1-3525NG-PI is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of SJ1-3525NG-PI is new and unused, you can buy SJ1-3525NG-PI CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SJ1-3525NG-PI.
