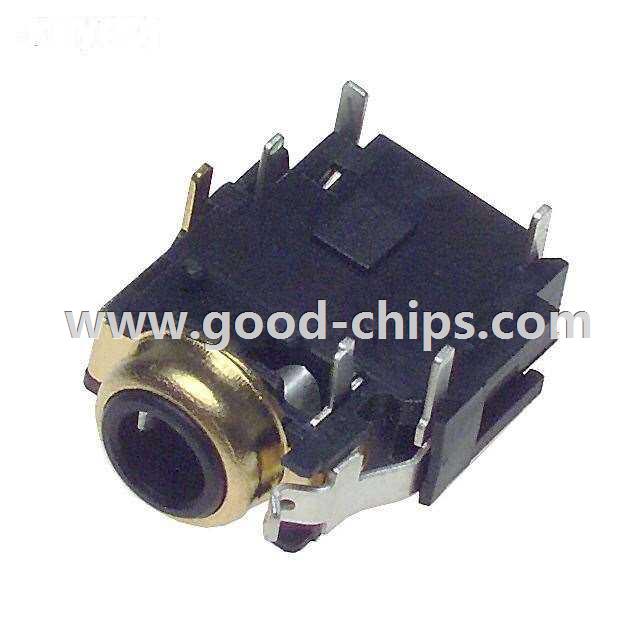

SJ-63516

SJ-63516
Manufacturer Part Number:SJ-63516
Manufacturer:
Product Category:Barrel - Audio Connectors
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Multiple Connector Solder
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: SJ-63516 Datasheet
SJ-63516´s Parameters
Internal Part Number898-SJ-63516
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilyBarrel - Audio Connectors
ManufacturerCUI Inc.
Series-
PackagingBulk
Part StatusObsolete
Connector TypePhone Jack
GenderFemale
Signal LinesMultiple
Industry Recognized Mating Diameter3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter0.142" (3.60mm)
Number of Positions/Contacts6 Conductors, 6 Contacts
Internal Switch(s)Does Not Contain Switch
Mounting TypeThrough Hole, Right Angle
TerminationSolder
ShieldingUnshielded
Features-
Insulation Color-
Voltage - Rated16VDC
Current Rating300mA
Mating Length/Depth-
Contact Material - PlatingTin
Body Material-
Body ColorBlack
Includes1 pc - 1 Connector
Standard Package 230
Weight0.001 KG
ApplicationEmail for details
Replacement PartSJ-63516
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

SJ-63516 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of SJ-63516 is new and unused, you can buy SJ-63516 CUI Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for SJ-63516.
