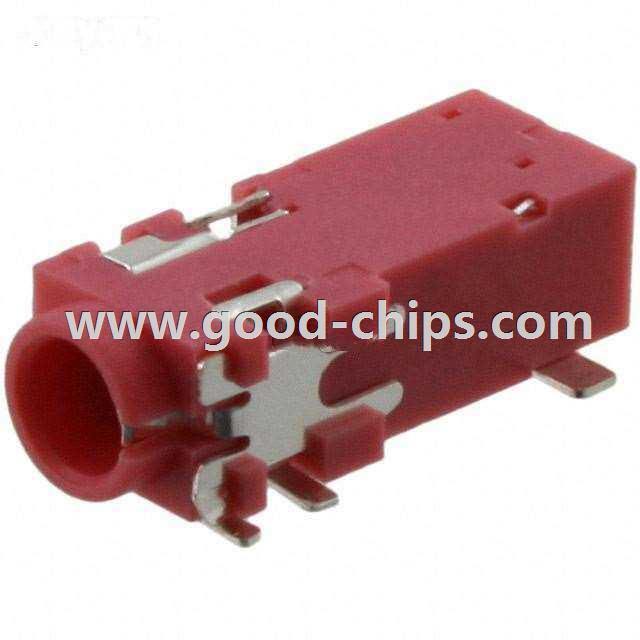

| Manufacturer Part Number: | SJ-43516-SMT-TR-PI |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | Barrel - Audio Connectors |
| Available Quantity: | 24010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Multiple Connector Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SJ-43516-SMT-TR-PI Datasheet |
| Internal Part Number | 898-SJ-43516-SMT-TR-PI | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | SJ-4351x-SMT Cert of Compliance | |
| Featured Product | Surface-Mount Audio Connectors | |
| 3D Model | SJ-43516-SMT-TR-PI | |
| Online Catalog | CUI | |
| Category | Connectors, Interconnects | |
| Family | Barrel - Audio Connectors | |
| Manufacturer | CUI Inc. | |
| Series | SJ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Connector Type | Phone Jack | |
| Gender | Female | |
| Signal Lines | Multiple | |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | |
| Actual Diameter | 0.142" (3.60mm) | |
| Number of Positions/Contacts | 4 Conductors, 6 Contacts | |
| Internal Switch(s) | Two Switches | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Shielding | Unshielded | |
| Features | Board Guide | |
| Insulation Color | - | |
| Voltage - Rated | 12VDC | |
| Current Rating | 1A | |
| Mating Length/Depth | 0.551" (14.00mm) | |
| Contact Material - Plating | Silver | |
| Body Material | - | |
| Body Color | Pink | |
| Includes | 1 pc - 1 Connector | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SJ-43516-SMT-TR-PI | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SJ-43516-SMT-TR-PI is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of SJ-43516-SMT-TR-PI is new and unused, you can buy SJ-43516-SMT-TR-PI CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SJ-43516-SMT-TR-PI.
