Manufacturer Part Number: | SIT9002AC-18H25DG |
---|---|
Manufacturer: | SiTIME |
Product Category: | Programmable Oscillators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 1MHz ~ 220MHz LVPECL MEMS (Silicon) Programmable Oscillator Surface Mount 2.5V 84mA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SIT9002AC-18H25DG Datasheet |
Internal Part Number | 898-SIT9002AC-18H25DG | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Crystals and Oscillators | |
Family | Programmable Oscillators | |
Manufacturer | SiTIME | |
Series | SiT9002 | |
Packaging | Bulk | |
Part Status | Active | |
Type | MEMS (Silicon) | |
Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | |
Available Frequency Range | 1MHz ~ 220MHz | |
Function | - | |
Output | LVPECL | |
Voltage - Supply | 2.5V | |
Frequency Stability | ±25ppm | |
Frequency Stability (Total) | - | |
Operating Temperature | -20°C ~ 70°C | |
Spread Spectrum Bandwidth | ±1.00%, Center Spread | |
Current - Supply (Max) | 84mA | |
Ratings | - | |
Mounting Type | Surface Mount | |

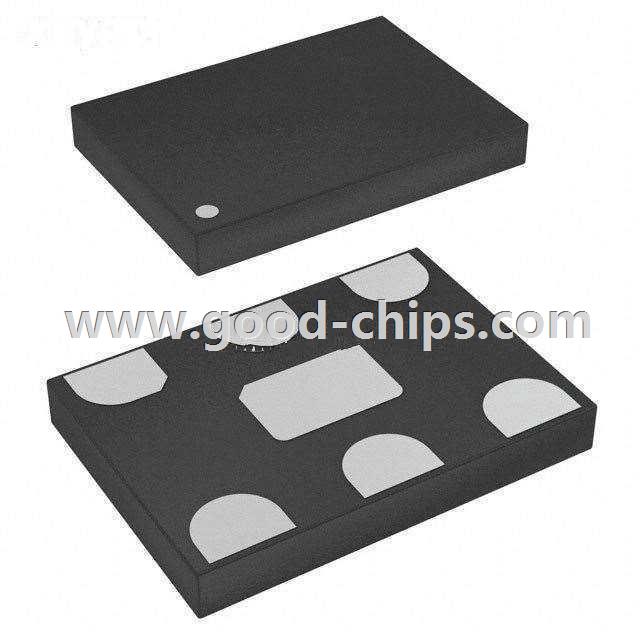

Package / Case | 6-SMD, No Lead (DFN, LCC) | |
Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | |
Height | 0.039" (1.00mm) | |
Current - Supply (Disable) (Max) | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SIT9002AC-18H25DG | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SIT9002AC-18H25DG is in stock for immediate shipping now. We are the distributor of SiTIME all series components. The condition of SIT9002AC-18H25DG is new and unused, you can buy SIT9002AC-18H25DG SiTIME with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SIT9002AC-18H25DG.
