| Manufacturer Part Number: | SIT3809AI-G-25SY |
|---|---|
| Manufacturer: | SiTIME |
| Product Category: | Programmable Oscillators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 80MHz ~ 220MHz LVCMOS, LVTTL MEMS (Silicon) Programmable Oscillator Surface Mount 2.5V 36mA Standby |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SIT3809AI-G-25SY Datasheet |
| Internal Part Number | 898-SIT3809AI-G-25SY | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Crystals and Oscillators | |
| Family | Programmable Oscillators | |
| Manufacturer | SiTIME | |
| Series | SiT3809 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | MEMS (Silicon) | |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | |
| Available Frequency Range | 80MHz ~ 220MHz | |
| Function | Standby | |
| Output | LVCMOS, LVTTL | |
| Voltage - Supply | 2.5V | |
| Frequency Stability | ±10ppm | |
| Frequency Stability (Total) | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Spread Spectrum Bandwidth | - | |
| Current - Supply (Max) | 36mA | |
| Ratings | - | |
| Mounting Type | Surface Mount | |

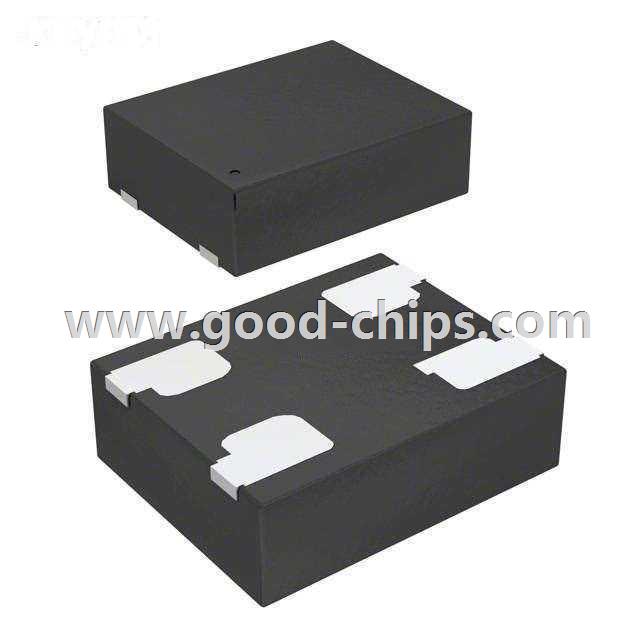

| Package / Case | 4-SMD, No Lead (DFN, LCC) | |
| Size / Dimension | 0.106" L x 0.094" W (2.70mm x 2.40mm) | |
| Height | 0.031" (0.80mm) | |
| Current - Supply (Disable) (Max) | 70µA | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SIT3809AI-G-25SY | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SIT3809AI-G-25SY is in stock for immediate shipping now. We are the distributor of SiTIME all series components. The condition of SIT3809AI-G-25SY is new and unused, you can buy SIT3809AI-G-25SY SiTIME with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SIT3809AI-G-25SY.
