Manufacturer Part Number: | SIT1533AC-H5-D14-32.768D |
---|---|
Manufacturer: | SiTIME |
Product Category: | Oscillators |
Available Quantity: | 12010 Pieces |
Unit Price: | Quote by Email |
Description: | 32.768kHz LVCMOS MEMS (Silicon) Oscillator Surface Mount 1.2 V ~ 3.63 V 1.3µA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SIT1533AC-H5-D14-32.768D Datasheet |
Internal Part Number | 898-SIT1533AC-H5-D14-32.768D | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Mfg Application Notes | SiT15xx Optimized Drive Settings | |
PCN Packaging | TR Pkg Update 27/Jul/2016 | |

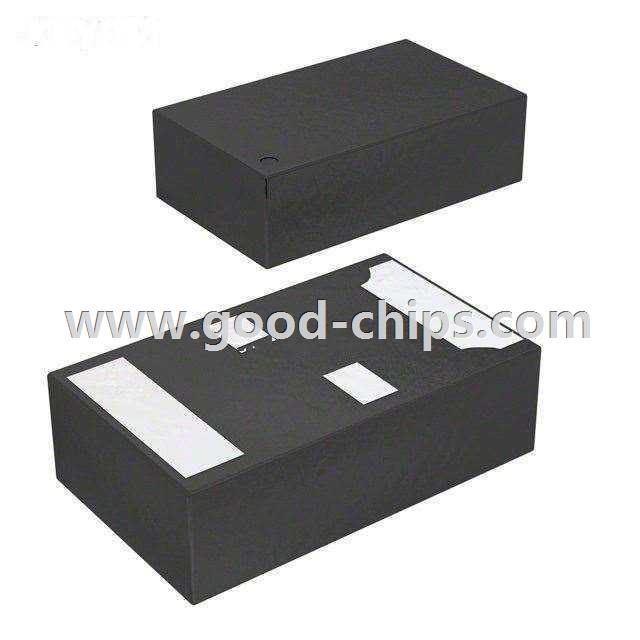

Online Catalog | SiT1533 Series | |
Category | Crystals and Oscillators | |
Family | Oscillators | |
Manufacturer | SiTIME | |
Series | SiT1533 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | MEMS (Silicon) | |
Frequency | 32.768kHz | |
Function | - | |
Output | LVCMOS | |
Voltage - Supply | 1.2 V ~ 3.63 V | |
Frequency Stability | +75ppm | |
Operating Temperature | -10°C ~ 70°C | |
Current - Supply (Max) | 1.3µA | |
Ratings | - | |
Mounting Type | Surface Mount | |
Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) | |
Height | 0.024" (0.60mm) | |
Package / Case | 4-SMD, No Lead (DFN, LCC) | |
Current - Supply (Disable) (Max) | - | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SIT1533AC-H5-D14-32.768D | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SIT1533AC-H5-D14-32.768D is in stock for immediate shipping now. We are the distributor of SiTIME all series components. The condition of SIT1533AC-H5-D14-32.768D is new and unused, you can buy SIT1533AC-H5-D14-32.768D SiTIME with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SIT1533AC-H5-D14-32.768D.
