| Manufacturer Part Number: | SIP32416DNP-T1-GE4 |
|---|---|
| Manufacturer: | Vishay Siliconix |
| Product Category: | PMIC - Power Distribution Switches, Load Drivers |
| Available Quantity: | 11400 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC SW W/CTRL SLEW RATE 8TDFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SIP32416DNP-T1-GE4 Datasheet |
| Internal Part Number | 898-SIP32416DNP-T1-GE4 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Vishay - Smart Load Switches | |
| PCN Assembly/Origin | PCN-SIL-1022014 Rev 0 24/Nov/2014 SIL-102-2014-Rev-2 03/Mar/2015 | |
| Online Catalog | General Purpose | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Distribution Switches, Load Drivers | |
| Manufacturer | Vishay Siliconix | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Switch Type | General Purpose | |
| Number of Outputs | 2 | |
| Ratio - Input:Output | 1:1 | |
| Output Configuration | High Side | |
| Output Type | N-Channel | |
| Interface | On/Off | |
| Voltage - Load | 1.1 V ~ 5.5 V | |
| Voltage - Supply (Vcc/Vdd) | Not Required | |
| Current - Output (Max) | 2.4A | |
| Rds On (Typ) | 62 mOhm | |
| Input Type | Non-Inverting | |
| Features | Load Discharge, Slew Rate Controlled | |
| Fault Protection | Reverse Current | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |

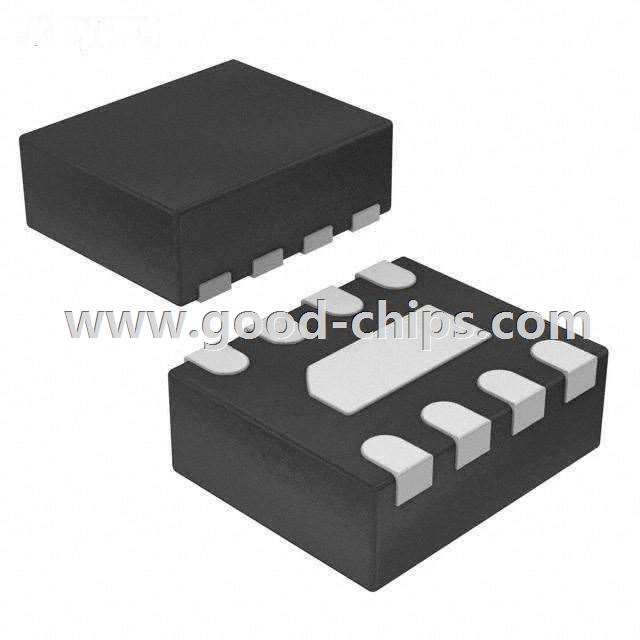

| Package / Case | 8-UFDFN Exposed Pad | |
| Supplier Device Package | 8-TDFN (2x2) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SIP32416DNP-T1-GE4 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SIP32416DNP-T1-GE4 is in stock for immediate shipping now. We are the distributor of Vishay Siliconix all series components. The condition of SIP32416DNP-T1-GE4 is new and unused, you can buy SIP32416DNP-T1-GE4 Vishay Siliconix with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SIP32416DNP-T1-GE4.
