Manufacturer Part Number: | SIP32101DB-T1-GE1 |
---|---|
Manufacturer: | Vishay Siliconix |
Product Category: | PMIC - Power Distribution Switches, Load Drivers |
Available Quantity: | 10290 Pieces |
Unit Price: | Quote by Email |
Description: | IC BI-DIR BATT SWITCH WCSP12 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SIP32101DB-T1-GE1 Datasheet |
Internal Part Number | 898-SIP32101DB-T1-GE1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Smart Load Switch | |
Featured Product | Vishay - Smart Load Switches SIP32101DB Bi-Directional Battery Switch | |
Online Catalog | General Purpose | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Power Distribution Switches, Load Drivers | |
Manufacturer | Vishay Siliconix | |
Series | - | |
Packaging | Digi-Reel® | |
Part Status | Active | |
Switch Type | General Purpose | |
Number of Outputs | 1 | |
Ratio - Input:Output | 1:1 | |
Output Configuration | High Side | |
Output Type | P-Channel | |
Interface | On/Off | |
Voltage - Load | 2.3 V ~ 5.5 V | |
Voltage - Supply (Vcc/Vdd) | Not Required | |
Current - Output (Max) | 5A | |
Rds On (Typ) | 6.5 mOhm | |
Input Type | - | |
Features | Slew Rate Controlled | |
Fault Protection | - | |
Operating Temperature | -40°C ~ 85°C (TA) | |

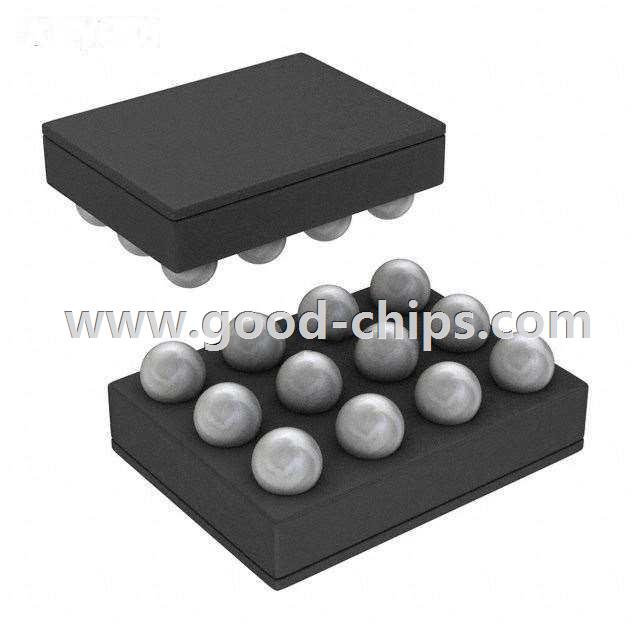

Package / Case | 12-UFBGA, WLCSP | |
Supplier Device Package | 12-WCSP (1.3x1.7) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SIP32101DB-T1-GE1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SIP32101DB-T1-GE1 is in stock for immediate shipping now. We are the distributor of Vishay Siliconix all series components. The condition of SIP32101DB-T1-GE1 is new and unused, you can buy SIP32101DB-T1-GE1 Vishay Siliconix with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SIP32101DB-T1-GE1.
