| Manufacturer Part Number: | SI8442-A-IS |
|---|---|
| Manufacturer: | Silicon Labs |
| Product Category: | Digital Isolators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | General Purpose Digital Isolator 2500Vrms 4 Channel 1Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SI8442-A-IS Datasheet |
| Internal Part Number | 898-SI8442-A-IS | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Isolators | |
| Family | Digital Isolators | |
| Manufacturer | Silicon Labs | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Technology | Capacitive Coupling | |
| Type | General Purpose | |
| Isolated Power | No | |
| Number of Channels | 4 | |
| Inputs - Side 1/Side 2 | 2/2 | |
| Channel Type | Unidirectional | |
| Voltage - Isolation | 2500Vrms | |
| Common Mode Transient Immunity (Min) | 25kV/µs | |
| Data Rate | 1Mbps | |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns | |
| Pulse Width Distortion (Max) | 30ns | |
| Rise / Fall Time (Typ) | 2ns, 2ns | |
| Voltage - Supply | 2.375 V ~ 5.5 V | |
| Operating Temperature | -40°C ~ 125°C | |

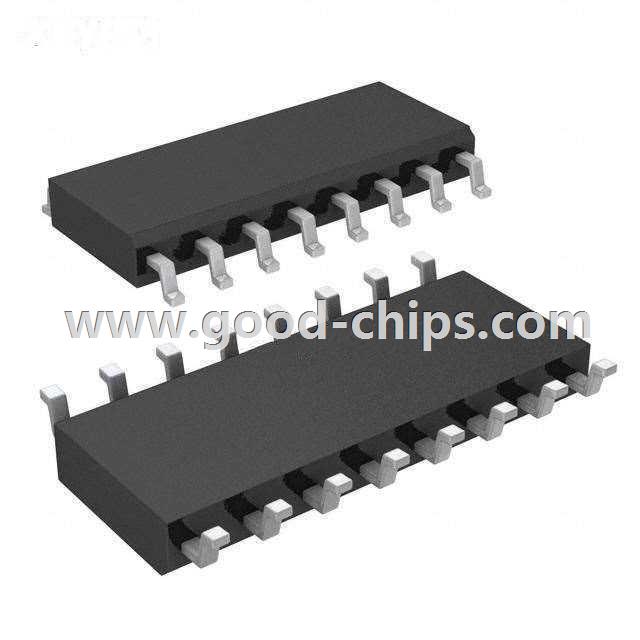

| Package / Case | 16-SOIC (0.295", 7.50mm Width) | |
| Supplier Device Package | 16-SOIC | |
| Standard Package | 46 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SI8442-A-IS | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SI8442-A-IS is in stock for immediate shipping now. We are the distributor of Silicon Labs all series components. The condition of SI8442-A-IS is new and unused, you can buy SI8442-A-IS Silicon Labs with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SI8442-A-IS.
