| Manufacturer Part Number: | SI8236AA-C-IMR |
|---|---|
| Manufacturer: | Silicon Labs |
| Product Category: | Isolators - Gate Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4A Gate Driver Capacitive Coupling 1000Vrms 2 Channel 14-LGA (5x5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SI8236AA-C-IMR Datasheet |
| Internal Part Number | 898-SI8236AA-C-IMR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | PCN-1404092 09/Apr/2014 | |
| Category | Isolators | |
| Family | Isolators - Gate Drivers | |
| Manufacturer | Silicon Labs | |
| Series | Automotive, AEC-Q100 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Technology | Capacitive Coupling | |
| Number of Channels | 2 | |
| Voltage - Isolation | 1000Vrms | |
| Common Mode Transient Immunity (Min) | 20kV/µs | |
| Propagation Delay tpLH / tpHL (Max) | 60ns, 60ns | |
| Pulse Width Distortion (Max) | 5.6ns | |
| Rise / Fall Time (Typ) | 12ns, 12ns (Max) | |
| Current - Output High, Low | 2A, 4A | |
| Current - Peak Output | 4A | |
| Voltage - Forward (Vf) (Typ) | - | |
| Current - DC Forward (If) (Max) | - | |
| Voltage - Supply | 6.5 V ~ 24 V | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 14-VFLGA | |

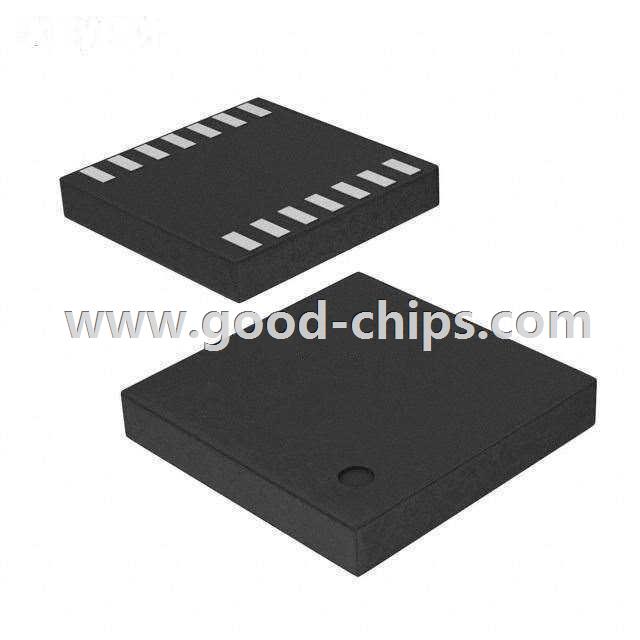

| Supplier Device Package | 14-LGA (5x5) | |
| Approvals | CQC, CSA, UR, VDE | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SI8236AA-C-IMR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SI8236AA-C-IMR is in stock for immediate shipping now. We are the distributor of Silicon Labs all series components. The condition of SI8236AA-C-IMR is new and unused, you can buy SI8236AA-C-IMR Silicon Labs with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SI8236AA-C-IMR.
