| Manufacturer Part Number: | SI8045AA-B-IUR |
|---|---|
| Manufacturer: | Silicon Labs |
| Product Category: | Digital Isolators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | General Purpose Digital Isolator 1000Vrms 4 Channel 10Mbps 35kV/µs CMTI 16-SSOP (0.154", 3.90mm Width) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SI8045AA-B-IUR Datasheet |
| Internal Part Number | 898-SI8045AA-B-IUR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Isolators | |
| Family | Digital Isolators | |
| Manufacturer | Silicon Labs | |
| Series | Automotive, AEC-Q100 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Technology | Capacitive Coupling | |
| Type | General Purpose | |
| Isolated Power | No | |
| Number of Channels | 4 | |
| Inputs - Side 1/Side 2 | 4/0 | |
| Channel Type | Unidirectional | |
| Voltage - Isolation | 1000Vrms | |
| Common Mode Transient Immunity (Min) | 35kV/µs | |
| Data Rate | 10Mbps | |
| Propagation Delay tpLH / tpHL (Max) | 65ns, 65ns | |
| Pulse Width Distortion (Max) | 30ns | |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns | |
| Voltage - Supply | 3.15 V ~ 5.5 V | |
| Operating Temperature | -40°C ~ 125°C | |

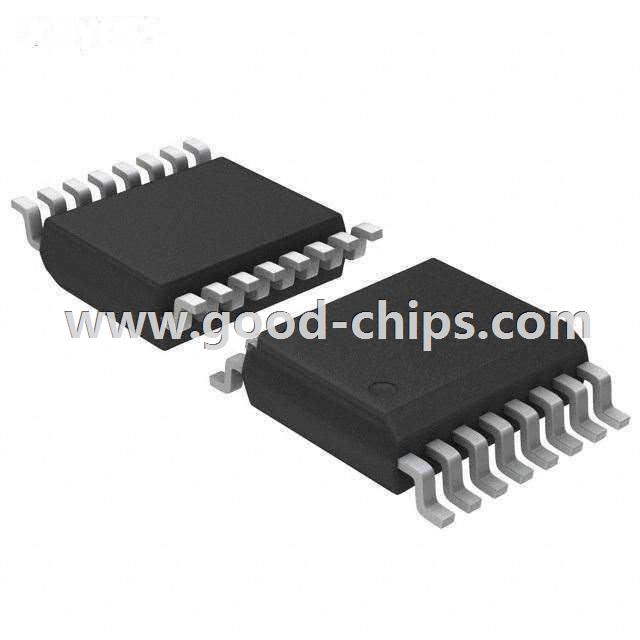

| Package / Case | 16-SSOP (0.154", 3.90mm Width) | |
| Supplier Device Package | 16-QSOP | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SI8045AA-B-IUR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SI8045AA-B-IUR is in stock for immediate shipping now. We are the distributor of Silicon Labs all series components. The condition of SI8045AA-B-IUR is new and unused, you can buy SI8045AA-B-IUR Silicon Labs with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SI8045AA-B-IUR.
