Manufacturer Part Number: | SI7108DN-T1-E3 |
---|---|
Manufacturer: | Vishay Siliconix |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 18010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 20V 14A 1212-8 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SI7108DN-T1-E3 Datasheet |
Internal Part Number | 898-SI7108DN-T1-E3 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | MOSFET Technologies for Power Conversion | |
PCN Assembly/Origin | Multiple Fabracation Changes09/Jul/2014 | |
Online Catalog | N-Channel Standard FETs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Vishay Siliconix | |
Series | TrenchFET® | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 20V | |
Current - Continuous Drain (Id) @ 25°C | 14A (Ta) | |
Rds On (Max) @ Id, Vgs | 4.9 mOhm @ 22A, 10V | |
Vgs(th) (Max) @ Id | 2V @ 250µA | |
Gate Charge (Qg) @ Vgs | 30nC @ 4.5V | |
Input Capacitance (Ciss) @ Vds | - | |
Power - Max | 1.5W | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

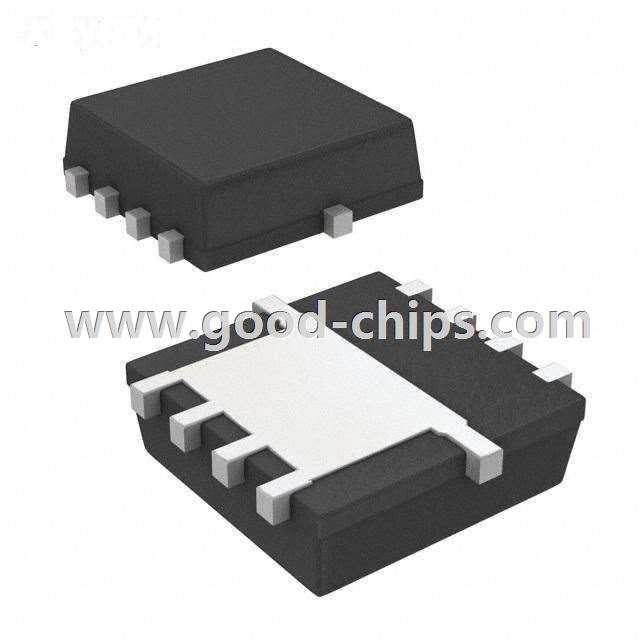

Package / Case | PowerPAK® 1212-8 | |
Supplier Device Package | PowerPAK® 1212-8 | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SI7108DN-T1-E3 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SI7108DN-T1-E3 is in stock for immediate shipping now. We are the distributor of Vishay Siliconix all series components. The condition of SI7108DN-T1-E3 is new and unused, you can buy SI7108DN-T1-E3 Vishay Siliconix with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SI7108DN-T1-E3.
