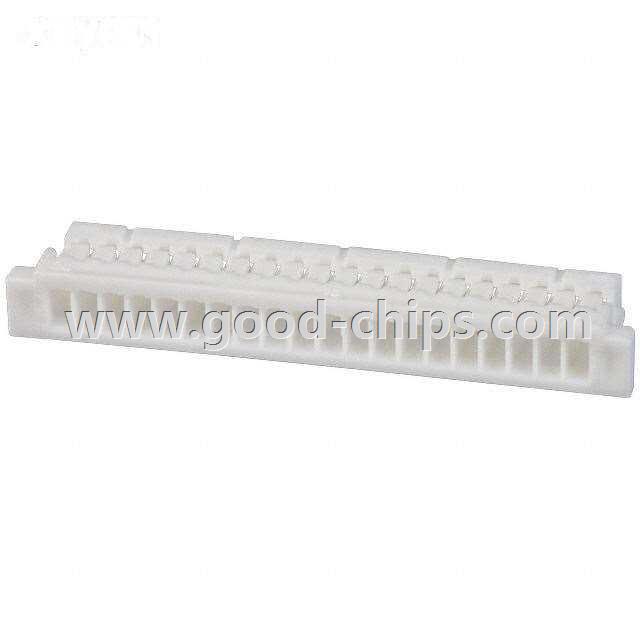

Manufacturer Part Number: | SHR-20V-S-B |
---|---|
Manufacturer: | JST Sales America Inc. |
Product Category: | Rectangular Connectors - Housings |
Available Quantity: | 28556 Pieces |
Unit Price: | Quote by Email |
Description: | 20 Position Rectangular Housing Connector Receptacle Natural 0.039" (1.00mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SHR-20V-S-B Datasheet |
Internal Part Number | 898-SHR-20V-S-B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | SH/SR Connectors | |
Online Catalog | SH Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Housings | |
Manufacturer | JST Sales America Inc. | |
Series | SH | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle | |
Contact Type | Female Socket | |
Number of Positions | 20 | |
Pitch | 0.039" (1.00mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Mounting Type | Free Hanging (In-Line) | |
Contact Termination | Crimp | |
Fastening Type | - | |
Color | Natural | |
Features | - | |
Note | Contacts Not Provided | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SHR-20V-S-B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SHR-20V-S-B is in stock for immediate shipping now. We are the distributor of JST Sales America Inc. all series components. The condition of SHR-20V-S-B is new and unused, you can buy SHR-20V-S-B JST Sales America Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SHR-20V-S-B.
