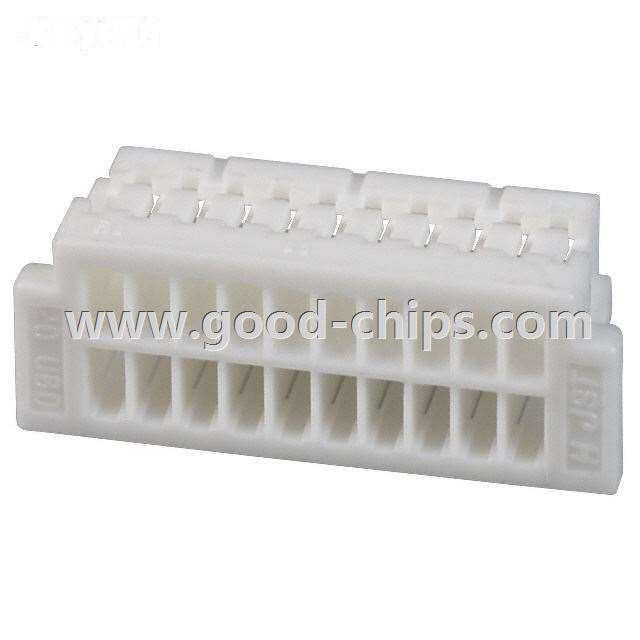

| Manufacturer Part Number: | SHDR-20V-S-B |
|---|---|
| Manufacturer: | JST Sales America Inc. |
| Product Category: | Rectangular Connectors - Housings |
| Available Quantity: | 21533 Pieces |
| Unit Price: | Quote by Email |
| Description: | 20 Position Rectangular Housing Connector Receptacle Natural 0.039" (1.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SHDR-20V-S-B Datasheet |
| Internal Part Number | 898-SHDR-20V-S-B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | SHD Connectors | |
| Online Catalog | SHD Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Housings | |
| Manufacturer | JST Sales America Inc. | |
| Series | SHD | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle | |
| Contact Type | Female Socket | |
| Number of Positions | 20 | |
| Pitch | 0.039" (1.00mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.039" (1.00mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Contact Termination | Crimp | |
| Fastening Type | - | |
| Color | Natural | |
| Features | - | |
| Note | Contacts Not Provided | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SHDR-20V-S-B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SHDR-20V-S-B is in stock for immediate shipping now. We are the distributor of JST Sales America Inc. all series components. The condition of SHDR-20V-S-B is new and unused, you can buy SHDR-20V-S-B JST Sales America Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SHDR-20V-S-B.
