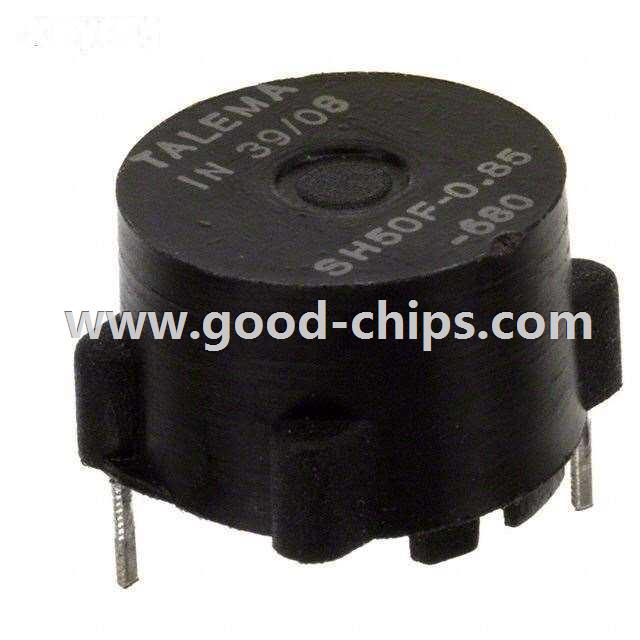

| Manufacturer Part Number: | SH50F-0.85-680 |
|---|---|
| Manufacturer: | Amgis, LLC |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9465 Pieces |
| Unit Price: | Quote by Email |
| Description: | 680µH Unshielded Toroidal Inductor 850mA 1.25 Ohm Max Radial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SH50F-0.85-680 Datasheet |
| Internal Part Number | 898-SH50F-0.85-680 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Inductor Selection for LM2594 Inductor Selection for LM2595 | |
| Online Catalog | SH50 Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Amgis, LLC | |
| Series | SH50 | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Toroidal | |
| Material - Core | Powdered Iron | |
| Inductance | 680µH | |
| Tolerance | ±20% | |
| Current Rating | 850mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 1.25 Ohm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Frequency - Test | 10kHz | |
| Mounting Type | Through Hole | |
| Package / Case | Radial | |
| Size / Dimension | 0.690" L x 0.670" W (17.50mm x 17.00mm) | |
| Height - Seated (Max) | 0.492" (12.50mm) | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SH50F-0.85-680 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SH50F-0.85-680 is in stock for immediate shipping now. We are the distributor of Amgis, LLC all series components. The condition of SH50F-0.85-680 is new and unused, you can buy SH50F-0.85-680 Amgis, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SH50F-0.85-680.
