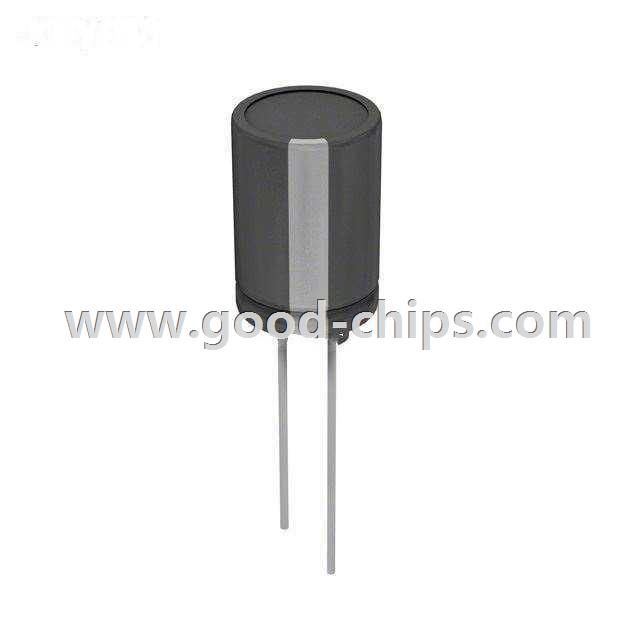

Manufacturer Part Number: | SH220M100ST |
---|---|
Manufacturer: | Cornell Dubilier Electronics (CDE) |
Product Category: | Aluminum Capacitors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 22µF 100V Aluminum Capacitors Radial, Can 6.03 Ohm @ 120Hz 2000 Hrs @ 105°C |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SH220M100ST Datasheet |
Internal Part Number | 898-SH220M100ST | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Capacitors | |
Family | Aluminum Capacitors | |
Manufacturer | Cornell Dubilier Electronics (CDE) | |
Series | SH | |
Packaging | Bulk | |
Part Status | Active | |
Capacitance | 22µF | |
Tolerance | ±20% | |
Voltage Rating | 100V | |
ESR (Equivalent Series Resistance) | 6.03 Ohm @ 120Hz | |
Lifetime @ Temp. | 2000 Hrs @ 105°C | |
Operating Temperature | -40°C ~ 105°C | |
Polarization | Polar | |
Applications | General Purpose | |
Ripple Current | 115mA @ 120Hz | |
Impedance | - | |
Lead Spacing | 0.138" (3.50mm) | |
Size / Dimension | 0.315" Dia (8.00mm) | |
Height - Seated (Max) | 0.453" (11.50mm) | |
Surface Mount Land Size | - | |
Mounting Type | Through Hole | |
Package / Case | Radial, Can | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SH220M100ST | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SH220M100ST is in stock for immediate shipping now. We are the distributor of Cornell Dubilier Electronics (CDE) all series components. The condition of SH220M100ST is new and unused, you can buy SH220M100ST Cornell Dubilier Electronics (CDE) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SH220M100ST.
