Manufacturer Part Number: | SH150S-2.70-77 |
---|---|
Manufacturer: | Amgis, LLC |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

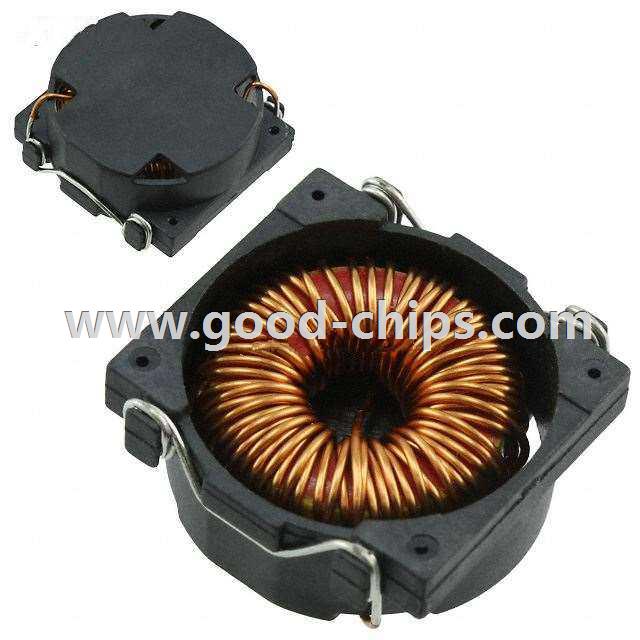

Description: | 77µH Unshielded Toroidal Inductor 2.7A 90 mOhm Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 2 (1 Year) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SH150S-2.70-77 Datasheet |
Internal Part Number | 898-SH150S-2.70-77 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Inductor Selection for LM2594 Inductor Selection for LM2595 | |
Featured Product | SH150 Series Toroidal Inductors | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Amgis, LLC | |
Series | SH150 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Toroidal | |
Material - Core | Powdered Iron | |
Inductance | 77µH | |
Tolerance | ±20% | |
Current Rating | 2.7A | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 90 mOhm | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -40°C ~ 125°C | |
Frequency - Test | 10kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.957" L x 0.925" W (24.30mm x 23.50mm) | |
Height - Seated (Max) | 0.427" (10.85mm) | |
Standard Package | 150 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SH150S-2.70-77 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SH150S-2.70-77 is in stock for immediate shipping now. We are the distributor of Amgis, LLC all series components. The condition of SH150S-2.70-77 is new and unused, you can buy SH150S-2.70-77 Amgis, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SH150S-2.70-77.
