| Manufacturer Part Number: | SG7805AT-883B |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | PMIC - Voltage Regulators - Linear |
| Available Quantity: | 9022 Pieces |
| Unit Price: | Quote by Email |
| Description: | Linear Voltage Regulator IC Positive Fixed 1 Output 5V 500mA TO-39 |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SG7805AT-883B Datasheet |
| Internal Part Number | 898-SG7805AT-883B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | High-Reliability Semiconductors | |
| Online Catalog | 3.3V to 5V | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - Linear | |
| Manufacturer | Microsemi IRE Division | |
| Series | Military, MIL-STD-883 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Regulator Topology | Positive Fixed | |
| Voltage - Output | 5V | |
| Current - Output | 500mA | |
| Voltage - Dropout (Typical) | 2V @ 500mA | |
| Number of Regulators | 1 | |
| Voltage - Input | Up to 50V | |
| Current - Limit (Min) | 500mA | |
| Operating Temperature | -55°C ~ 125°C | |
| Mounting Type | Through Hole | |

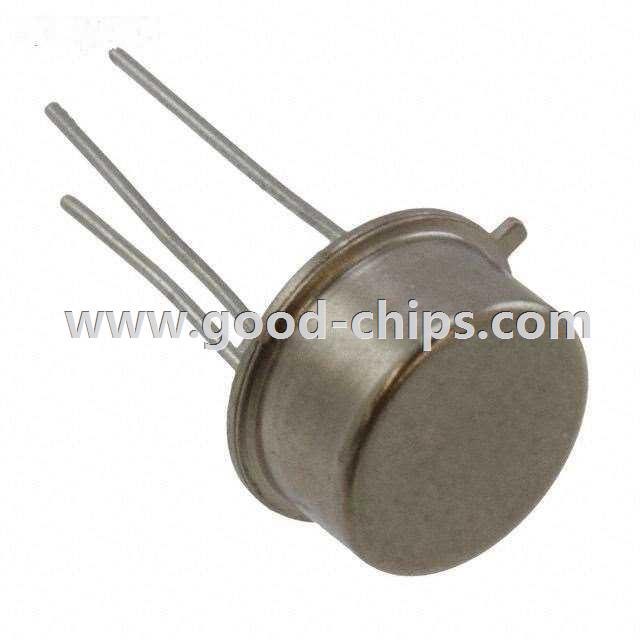

| Package / Case | TO-205AD, TO-39-3 Metal Can | |
| Supplier Device Package | TO-39 | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SG7805AT-883B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SG7805AT-883B is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of SG7805AT-883B is new and unused, you can buy SG7805AT-883B Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SG7805AT-883B.
