Manufacturer Part Number: | SG7050CBN 106.250000M-TJGA3 |
---|---|
Manufacturer: | EPSON |
Product Category: | Oscillators |
Available Quantity: | 9260 Pieces |
Unit Price: | Quote by Email |
Description: | 106.25MHz CMOS XO (Standard) Oscillator Surface Mount 1.6 V ~ 3.6 V 11mA Standby (Power Down) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SG7050CBN 106.250000M-TJGA3 Datasheet |
Internal Part Number | 898-SG7050CBN 106.250000M-TJGA3 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | SG5032C*N and SG7050C*N Series | |
Category | Crystals and Oscillators | |
Family | Oscillators | |
Manufacturer | EPSON | |
Series | SG7050 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | XO (Standard) | |
Frequency | 106.25MHz | |
Function | Standby (Power Down) | |
Output | CMOS | |
Voltage - Supply | 1.6 V ~ 3.6 V | |
Frequency Stability | ±50ppm | |
Operating Temperature | -40°C ~ 85°C | |
Current - Supply (Max) | 11mA | |
Ratings | - | |
Mounting Type | Surface Mount | |
Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | |
Height | 0.063" (1.60mm) | |

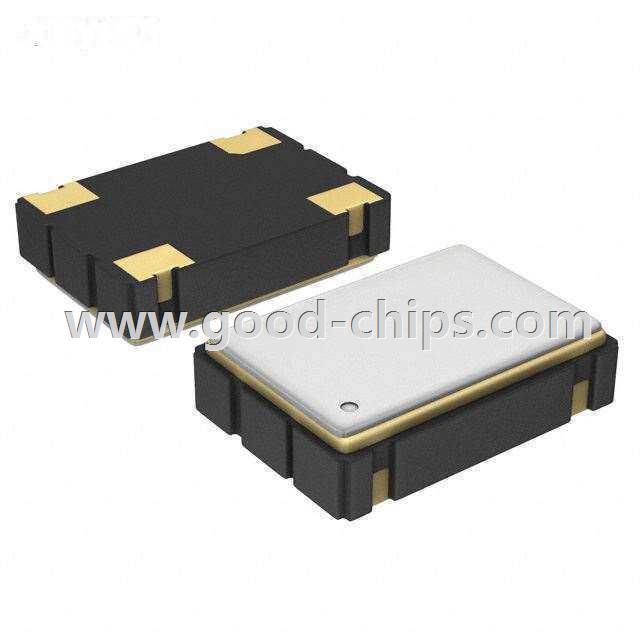

Package / Case | 4-SMD, No Lead (DFN, LCC) | |
Current - Supply (Disable) (Max) | 10µA | |
Standard Package | 250 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SG7050CBN 106.250000M-TJGA3 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SG7050CBN 106.250000M-TJGA3 is in stock for immediate shipping now. We are the distributor of EPSON all series components. The condition of SG7050CBN 106.250000M-TJGA3 is new and unused, you can buy SG7050CBN 106.250000M-TJGA3 EPSON with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SG7050CBN 106.250000M-TJGA3.
