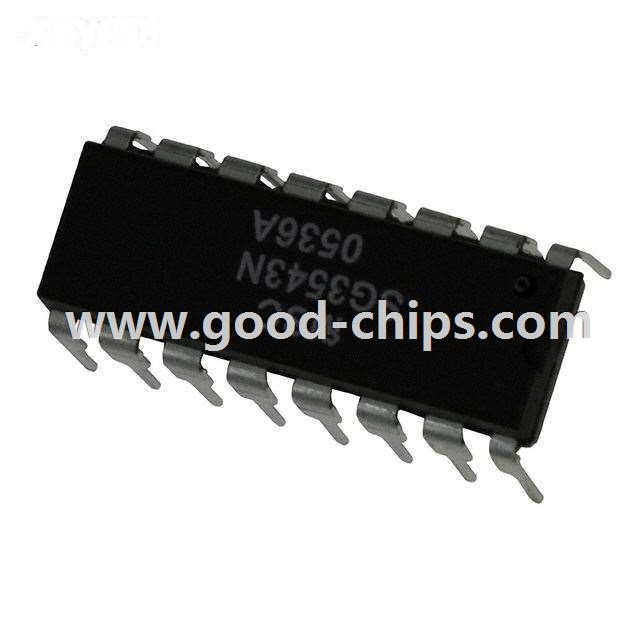

| Manufacturer Part Number: | SG3543N |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | PMIC - Power Supply Controllers, Monitors |
| Available Quantity: | 19869 Pieces |
| Unit Price: | Quote by Email |
| Description: | Power Supply Controller Power Supply, Supervisor 16-DIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SG3543N Datasheet |
| Internal Part Number | 898-SG3543N | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Supply Controllers, Monitors | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Applications | Power Supply, Supervisor | |
| Voltage - Input | - | |
| Voltage - Supply | 4.5 V ~ 40 V | |
| Current - Supply | 7mA | |
| Operating Temperature | 0°C ~ 70°C | |
| Mounting Type | Through Hole | |
| Package / Case | 16-DIP | |
| Supplier Device Package | 16-DIP | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SG3543N | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SG3543N is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of SG3543N is new and unused, you can buy SG3543N Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SG3543N.
