| Manufacturer Part Number: | SG3526BDW |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck, Flyback Regulator Positive Output Step-Down, Step-Up/Step-Down DC-DC Controller IC 18-SOIC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SG3526BDW Datasheet |
| Internal Part Number | 898-SG3526BDW | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Controllers | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | - | |
| Part Status | Active | |
| Output Type | Transistor Driver | |
| Function | Step-Down, Step-Up/Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck, Flyback | |
| Number of Outputs | 2 | |
| Output Phases | 1 | |
| Voltage - Supply (Vcc/Vdd) | 8 V ~ 35 V | |
| Frequency - Switching | 1Hz ~ 500kHz | |
| Duty Cycle (Max) | 49% | |
| Synchronous Rectifier | Yes | |
| Clock Sync | No | |
| Serial Interfaces | - | |
| Control Features | Dead Time Control, Enable, Frequency Control, Reset, Soft Start | |
| Operating Temperature | 0°C ~ 70°C (TA) | |
| Package / Case | 18-SOIC (0.295", 7.50mm Width) | |
| Supplier Device Package | 18-SOIC | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SG3526BDW | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |

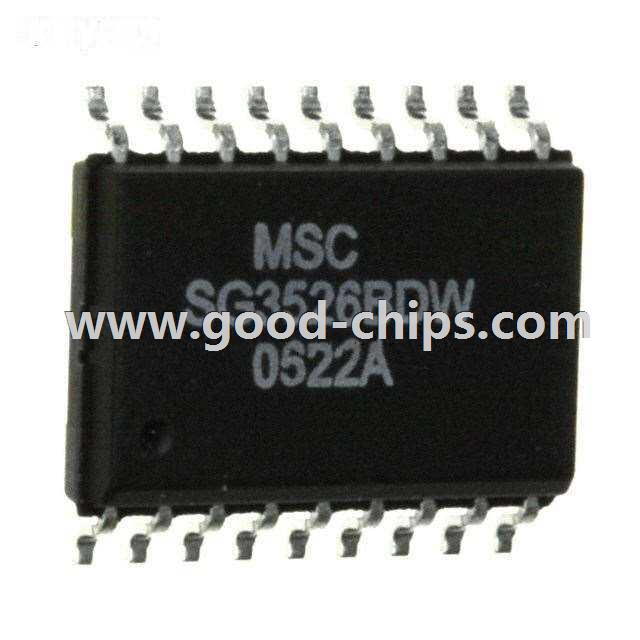

| Picture / Image / Photo | Send via email | |
SG3526BDW is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of SG3526BDW is new and unused, you can buy SG3526BDW Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SG3526BDW.
