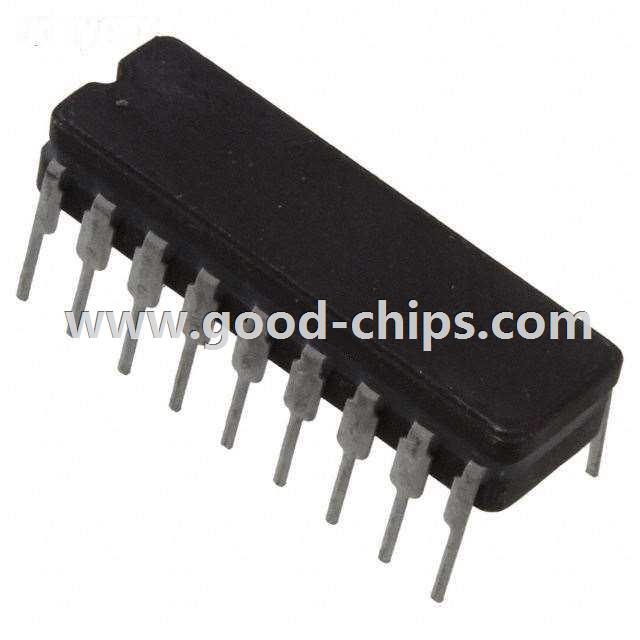

Manufacturer Part Number: | SG2823J-883B |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Transistors - Bipolar (BJT) - Arrays |
Available Quantity: | 9115 Pieces |
Unit Price: | Quote by Email |
Description: | TRANS 8NPN DARL 95V 0.5A 18DIP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SG2823J-883B Datasheet |
Internal Part Number | 898-SG2823J-883B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | High-Reliability Semiconductors | |
Online Catalog | NPN Transistor Arrays | |
Category | Discrete Semiconductor Products | |
Family | Transistors - Bipolar (BJT) - Arrays | |
Manufacturer | Microsemi IRE Division | |
Series | - | |
Packaging | Tube | |
Part Status | Quote Required | |
Transistor Type | 8 NPN Darlington | |
Current - Collector (Ic) (Max) | 500mA | |
Voltage - Collector Emitter Breakdown (Max) | 95V | |
Vce Saturation (Max) @ Ib, Ic | 1.6V @ 500µA, 350mA | |
Current - Collector Cutoff (Max) | - | |
DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 350mA, 2V | |
Power - Max | - | |
Frequency - Transition | - | |
Mounting Type | Through Hole | |
Package / Case | - | |
Supplier Device Package | 18-CDIP | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SG2823J-883B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SG2823J-883B is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of SG2823J-883B is new and unused, you can buy SG2823J-883B Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SG2823J-883B.
