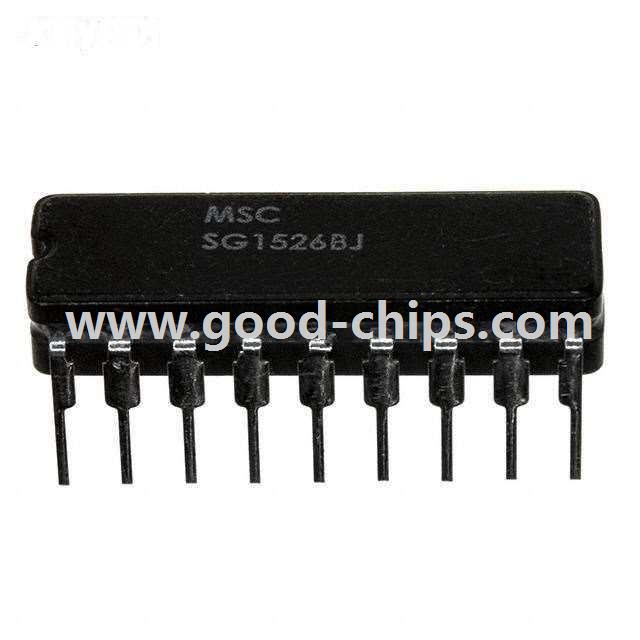

| Manufacturer Part Number: | SG1526BJ-883B |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Controllers |
| Available Quantity: | 9025 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck, Flyback Regulator Positive Output Step-Down, Step-Up/Step-Down DC-DC Controller IC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SG1526BJ-883B Datasheet |
| Internal Part Number | 898-SG1526BJ-883B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | High-Reliability Semiconductors | |
| Online Catalog | Multi-Topology | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Controllers | |
| Manufacturer | Microsemi IRE Division | |
| Series | Military, MIL-STD-883 | |
| Packaging | Tube | |
| Part Status | Active | |
| Output Type | Transistor Driver | |
| Function | Step-Down, Step-Up/Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck, Flyback | |
| Number of Outputs | 2 | |
| Output Phases | 1 | |
| Voltage - Supply (Vcc/Vdd) | 8 V ~ 35 V | |
| Frequency - Switching | 1Hz ~ 500kHz | |
| Duty Cycle (Max) | 49% | |
| Synchronous Rectifier | Yes | |
| Clock Sync | No | |
| Serial Interfaces | - | |
| Control Features | Enable, Reset, Soft Start | |
| Operating Temperature | -55°C ~ 125°C (TJ) | |
| Package / Case | 18-DIP | |
| Supplier Device Package | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SG1526BJ-883B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SG1526BJ-883B is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of SG1526BJ-883B is new and unused, you can buy SG1526BJ-883B Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SG1526BJ-883B.
