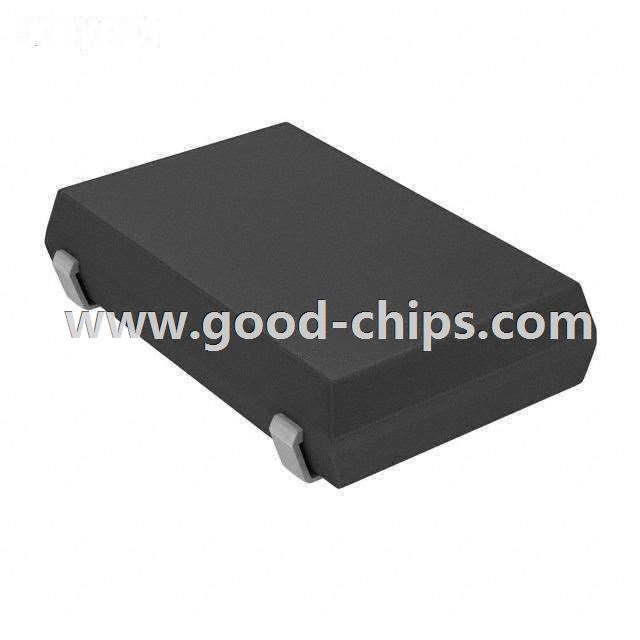

| Manufacturer Part Number: | SG-8003JF-SCM |
|---|---|
| Manufacturer: | EPSON |
| Product Category: | Programmable Oscillators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1MHz ~ 166MHz CMOS XO (Standard) Programmable Oscillator Surface Mount 3.3V 15mA Standby |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SG-8003JF-SCM Datasheet |
| Internal Part Number | 898-SG-8003JF-SCM | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | SPXO and VCXO | |
| Featured Product | SG-8003 Series Programmable Oscillators | |
| Online Catalog | SG-8003 Series with Ordering Guide | |
| Category | Crystals and Oscillators | |
| Family | Programmable Oscillators | |
| Manufacturer | EPSON | |
| Series | SG-8003 | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | XO (Standard) | |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | |
| Available Frequency Range | 1MHz ~ 166MHz | |
| Function | Standby | |
| Output | CMOS | |
| Voltage - Supply | 3.3V | |
| Frequency Stability | ±100ppm | |
| Frequency Stability (Total) | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Spread Spectrum Bandwidth | - | |
| Current - Supply (Max) | 15mA | |
| Ratings | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-LESOP (0.181", 4.60mm Width) | |
| Size / Dimension | 0.280" L x 0.181" W (7.10mm x 4.60mm) | |
| Height | 0.059" (1.50mm) | |
| Current - Supply (Disable) (Max) | 50µA | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SG-8003JF-SCM | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SG-8003JF-SCM is in stock for immediate shipping now. We are the distributor of EPSON all series components. The condition of SG-8003JF-SCM is new and unused, you can buy SG-8003JF-SCM EPSON with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SG-8003JF-SCM.
