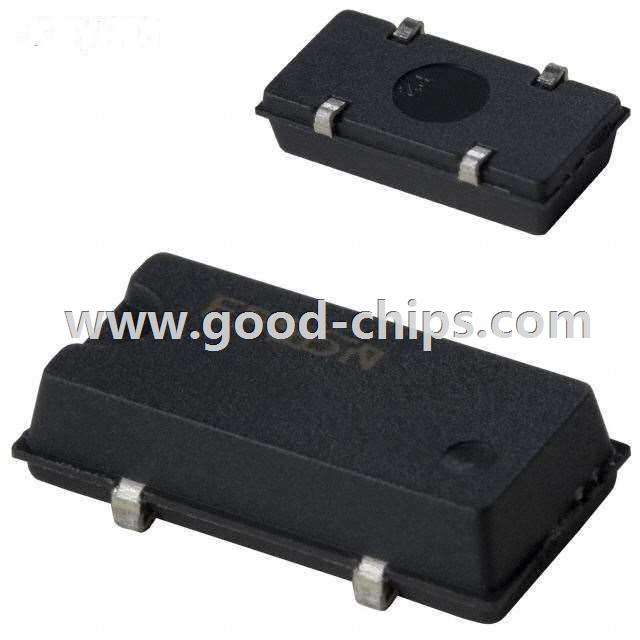

Manufacturer Part Number: | SG-8002JC-MPT |
---|---|
Manufacturer: | EPSON |
Product Category: | Programmable Oscillators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 1MHz ~ 125MHz TTL XO (Standard) Programmable Oscillator Surface Mount 5V 45mA Standby |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SG-8002JC-MPT Datasheet |
Internal Part Number | 898-SG-8002JC-MPT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Crystals and Oscillators | |
Family | Programmable Oscillators | |
Manufacturer | EPSON | |
Series | SG-8002 | |
Packaging | Tube | |
Part Status | Obsolete | |
Type | XO (Standard) | |
Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | |
Available Frequency Range | 1MHz ~ 125MHz | |
Function | Standby | |
Output | TTL | |
Voltage - Supply | 5V | |
Frequency Stability | ±50ppm | |
Frequency Stability (Total) | - | |
Operating Temperature | -20°C ~ 70°C | |
Spread Spectrum Bandwidth | - | |
Current - Supply (Max) | 45mA | |
Ratings | - | |
Mounting Type | Surface Mount | |
Package / Case | 4-SOJ, 5.08mm pitch | |
Size / Dimension | 0.413" L x 0.200" W (10.50mm x 5.08mm) | |
Height | 0.106" (2.70mm) | |
Current - Supply (Disable) (Max) | 50µA | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SG-8002JC-MPT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SG-8002JC-MPT is in stock for immediate shipping now. We are the distributor of EPSON all series components. The condition of SG-8002JC-MPT is new and unused, you can buy SG-8002JC-MPT EPSON with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SG-8002JC-MPT.
