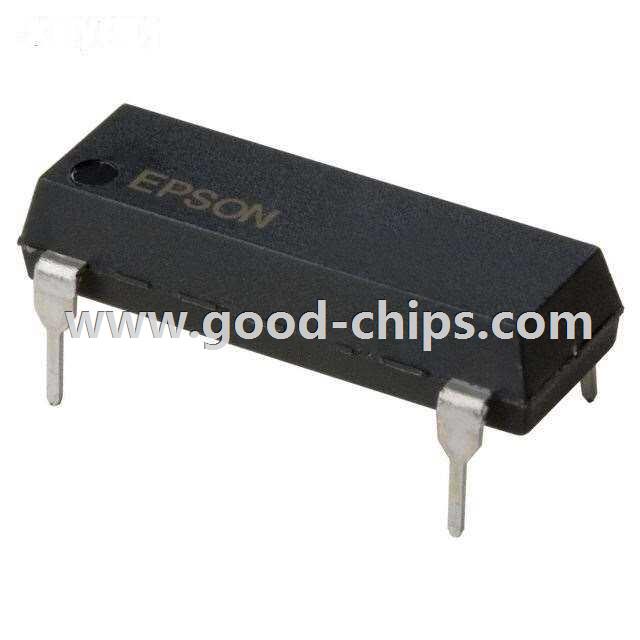

| Manufacturer Part Number: | SG-8002DB-MPT |
|---|---|
| Manufacturer: | EPSON |
| Product Category: | Programmable Oscillators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1MHz ~ 125MHz CMOS XO (Standard) Programmable Oscillator Through Hole 5V 45mA Enable/Disable |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SG-8002DB-MPT Datasheet |
| Internal Part Number | 898-SG-8002DB-MPT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Crystals and Oscillators | |
| Family | Programmable Oscillators | |
| Manufacturer | EPSON | |
| Series | SG-8002 | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Type | XO (Standard) | |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | |
| Available Frequency Range | 1MHz ~ 125MHz | |
| Function | Enable/Disable | |
| Output | CMOS | |
| Voltage - Supply | 5V | |
| Frequency Stability | ±50ppm | |
| Frequency Stability (Total) | - | |
| Operating Temperature | -20°C ~ 70°C | |
| Spread Spectrum Bandwidth | - | |
| Current - Supply (Max) | 45mA | |
| Ratings | - | |
| Mounting Type | Through Hole | |
| Package / Case | 14-DIP, 4 Leads (Full Size) | |
| Size / Dimension | 0.780" L x 0.250" W (19.80mm x 6.36mm) | |
| Height | 0.209" (5.30mm) | |
| Current - Supply (Disable) (Max) | 30mA | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SG-8002DB-MPT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SG-8002DB-MPT is in stock for immediate shipping now. We are the distributor of EPSON all series components. The condition of SG-8002DB-MPT is new and unused, you can buy SG-8002DB-MPT EPSON with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SG-8002DB-MPT.
