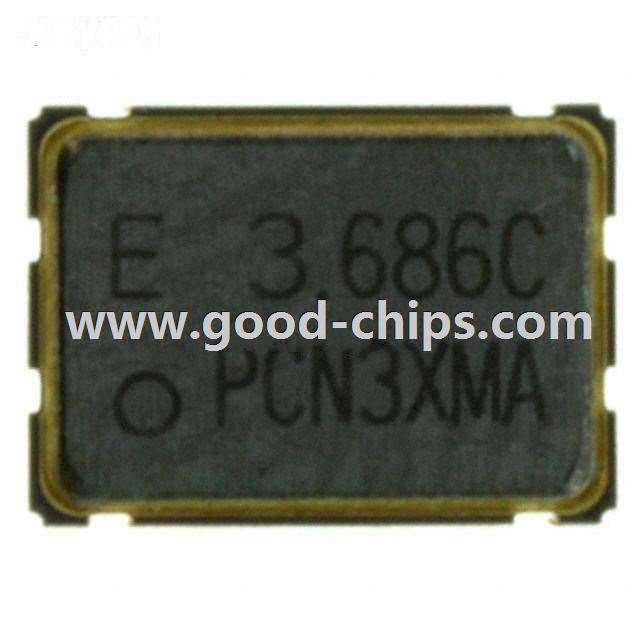

Manufacturer Part Number: | SG-730PCN 3.6864MC3 |
---|---|
Manufacturer: | EPSON |
Product Category: | Oscillators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 3.6864MHz CMOS XO (Standard) Oscillator Surface Mount 3.3V 7mA Enable/Disable |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SG-730PCN 3.6864MC3 Datasheet |
Internal Part Number | 898-SG-730PCN 3.6864MC3 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Crystals and Oscillators | |
Family | Oscillators | |
Manufacturer | EPSON | |
Series | SG-730 | |
Packaging | Cut Tape (CT) | |
Part Status | Obsolete | |
Type | XO (Standard) | |
Frequency | 3.6864MHz | |
Function | Enable/Disable | |
Output | CMOS | |
Voltage - Supply | 3.3V | |
Frequency Stability | ±100ppm | |
Operating Temperature | -20°C ~ 70°C | |
Current - Supply (Max) | 7mA | |
Ratings | - | |
Mounting Type | Surface Mount | |
Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | |
Height | 0.059" (1.50mm) | |
Package / Case | 4-SMD, No Lead (DFN, LCC) | |
Current - Supply (Disable) (Max) | 4mA | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SG-730PCN 3.6864MC3 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SG-730PCN 3.6864MC3 is in stock for immediate shipping now. We are the distributor of EPSON all series components. The condition of SG-730PCN 3.6864MC3 is new and unused, you can buy SG-730PCN 3.6864MC3 EPSON with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SG-730PCN 3.6864MC3.
