Manufacturer Part Number: | SFV18R-1STE1HLF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | FFC, FPC (Flat Flexible) Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

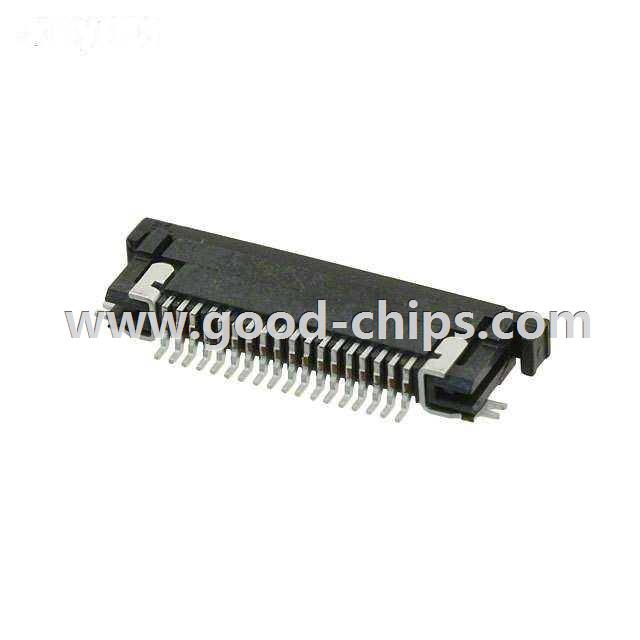

Description: | 18 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SFV18R-1STE1HLF Datasheet |
Internal Part Number | 898-SFV18R-1STE1HLF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | FFC and FPC Connectors | |
PCN Assembly/Origin | FFC/FPC series 20/Jul/2011 | |
Online Catalog | SFV-R Series | |
Category | Connectors, Interconnects | |
Family | FFC, FPC (Flat Flexible) Connectors | |
Manufacturer | Amphenol FCI | |
Series | SFV-R | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Flat Flex Type | FFC, FPC | |
Mounting Type | Surface Mount, Right Angle | |
Connector/Contact Type | Contacts, Bottom | |
Number of Positions | 18 | |
Pitch | 0.020" (0.50mm) | |
Termination | Solder | |
FFC, FCB Thickness | 0.30mm, 0.33mm | |
Height Above Board | 0.071" (1.80mm) | |
Locking Feature | Slide Lock | |
Cable End Type | Straight, Tapered | |
Contact Material | Phosphor Bronze | |
Contact Finish | Tin | |
Housing Material | Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free | |
Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free | |
Features | Solder Retention, Zero Insertion Force (ZIF) | |
Voltage Rating | 50V | |
Operating Temperature | -55°C ~ 105°C | |
Material Flammability Rating | UL94 V-0 | |
Current Rating | 0.5A | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SFV18R-1STE1HLF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SFV18R-1STE1HLF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of SFV18R-1STE1HLF is new and unused, you can buy SFV18R-1STE1HLF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SFV18R-1STE1HLF.
