| Manufacturer Part Number: | SF7282-3SG-3ES |
|---|---|
| Manufacturer: | Switchcraft Inc. |
| Product Category: | Circular Connectors |
| Available Quantity: | 9074 Pieces |
| Unit Price: | Quote by Email |

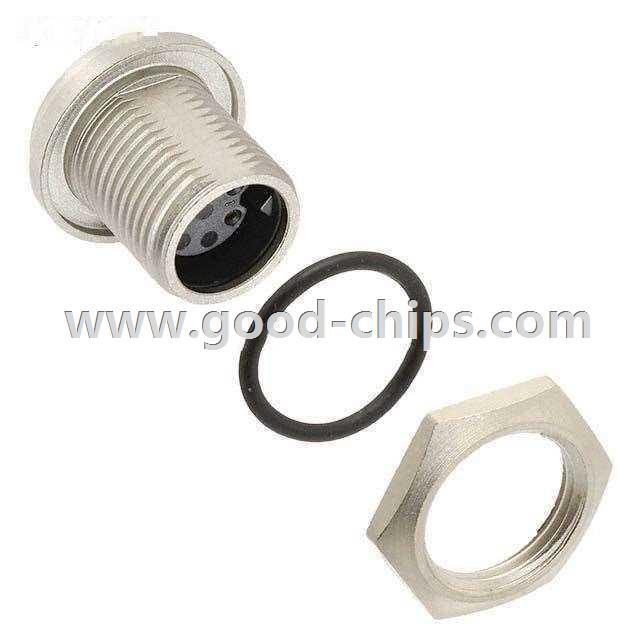

| Description: | 3 Position Circular Connector Receptacle, Female Sockets Solder Cup Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SF7282-3SG-3ES Datasheet |
| Internal Part Number | 898-SF7282-3SG-3ES | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Mini-Con-X (Shielded) Hole Patterns Micro,Mini,Multi,Maxi,Mega-Con-X Panel Cutouts | |
| Featured Product | Shielded MINI-CON-X® Connectors | |
| Online Catalog | Mini-Con-X® Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors | |
| Manufacturer | Conxall/Switchcraft | |
| Series | Shielded Mini-Con-X® | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 3 | |
| Shell Size - Insert | - | |
| Shell Size, MIL | - | |
| Mounting Type | Panel Mount, Bulkhead - Front Side Nut | |
| Termination | Solder Cup | |
| Fastening Type | Threaded | |
| Orientation | Keyed | |
| Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof | |
| Shell Material, Finish | Copper Alloy, Nickel Plated | |
| Contact Finish | Gold | |
| Features | Shielded | |
| Contact Finish Thickness | - | |
| Current Rating | - | |
| Voltage - Rated | 600VAC/DC | |
| Operating Temperature | -40°C ~ 120°C | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SF7282-3SG-3ES | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SF7282-3SG-3ES is in stock for immediate shipping now. We are the distributor of Switchcraft Inc. all series components. The condition of SF7282-3SG-3ES is new and unused, you can buy SF7282-3SG-3ES Switchcraft Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SF7282-3SG-3ES.
