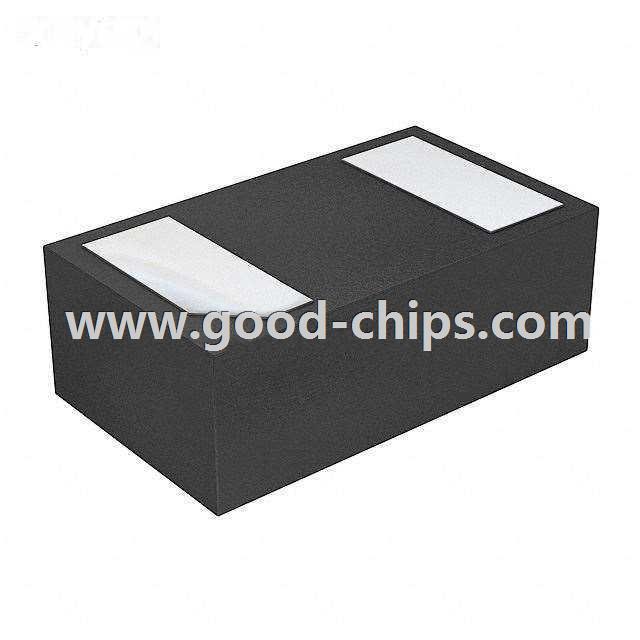

| Manufacturer Part Number: | SESD0201X1BN-0010-098 |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | TVS - Diodes |
| Available Quantity: | 39010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 7VWM 10VC DFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SESD0201X1BN-0010-098 Datasheet |
| Internal Part Number | 898-SESD0201X1BN-0010-098 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Silicon ESD Protection Devices SESD Series | |
| PCN Other | Circuit Protection Products Availabe 27/Jun/2016 | |
| Online Catalog | Automotive, AEC-Q101, SESD, SPA® Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Littelfuse Inc. | |
| Series | Automotive, AEC-Q101, SESD, SPA® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 1 | |
| Voltage - Reverse Standoff (Typ) | 7V (Max) | |
| Voltage - Breakdown (Min) | 9.8V (Typ) | |
| Voltage - Clamping (Max) @ Ipp | 10V (Typ) | |
| Current - Peak Pulse (10/1000µs) | 2A (8/20µs) | |
| Power - Peak Pulse | - | |
| Power Line Protection | No | |
| Applications | Automotive, HDMI | |
| Capacitance @ Frequency | 0.1pF @ 3GHz | |
| Operating Temperature | -55°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 0201 (0603 Metric) | |
| Supplier Device Package | 0201 | |
| Standard Package | 15,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SESD0201X1BN-0010-098 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SESD0201X1BN-0010-098 is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of SESD0201X1BN-0010-098 is new and unused, you can buy SESD0201X1BN-0010-098 Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SESD0201X1BN-0010-098.
