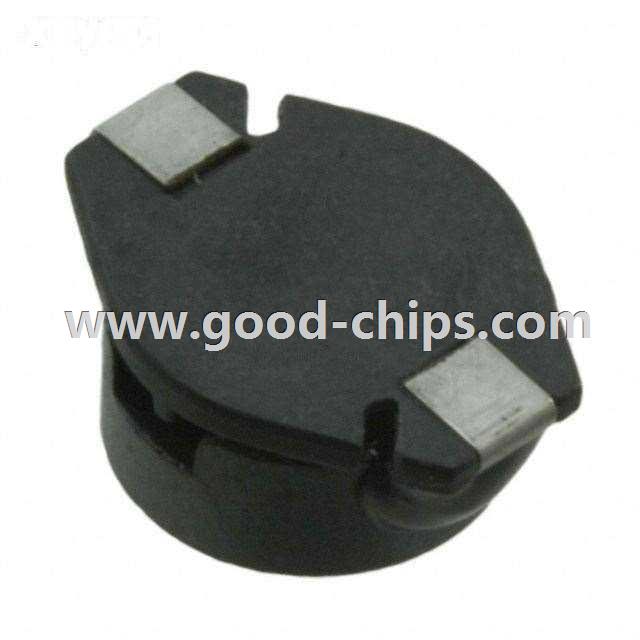

Manufacturer Part Number: | SDS850R-153M |
---|---|
Manufacturer: | API Delevan Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 12010 Pieces |
Unit Price: | Quote by Email |
Description: | 15µH Shielded Wirewound Inductor 1.3A 140 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SDS850R-153M Datasheet |
Internal Part Number | 898-SDS850R-153M | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | SDS Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | API Delevan Inc. | |
Series | SDS850R | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 15µH | |
Tolerance | ±20% | |
Current Rating | 1.3A | |
Current - Saturation | - | |
Shielding | Shielded | |
DC Resistance (DCR) | 140 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -40°C ~ 85°C | |
Frequency - Test | 1kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.413" L x 0.315" W (10.50mm x 8.00mm) | |
Height - Seated (Max) | 0.190" (4.80mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SDS850R-153M | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SDS850R-153M is in stock for immediate shipping now. We are the distributor of API Delevan Inc. all series components. The condition of SDS850R-153M is new and unused, you can buy SDS850R-153M API Delevan Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SDS850R-153M.
