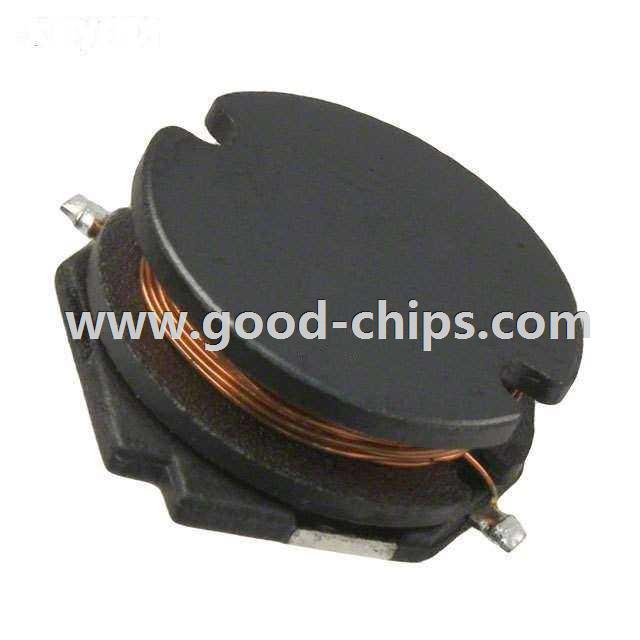

| Manufacturer Part Number: | SDR1305-221K |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 13810 Pieces |
| Unit Price: | Quote by Email |
| Description: | 220µH Unshielded Wirewound Inductor 1A 500 mOhm Max Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SDR1305-221K Datasheet |
| Internal Part Number | 898-SDR1305-221K | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | SDR1305 Series Material Declaration | |
| 3D Model | SDR1305.stp | |
| PCN Assembly/Origin | Magnetic products Oct/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | SDR Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Bourns Inc. | |
| Series | SDR1305 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 220µH | |
| Tolerance | ±10% | |
| Current Rating | 1A | |
| Current - Saturation | 950mA | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 500 mOhm Max | |
| Q @ Freq | 16 @ 796kHz | |
| Frequency - Self Resonant | 7MHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) | |
| Height - Seated (Max) | 0.201" (5.10mm) | |
| Standard Package | 600 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SDR1305-221K | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SDR1305-221K is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of SDR1305-221K is new and unused, you can buy SDR1305-221K Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SDR1305-221K.
