| Manufacturer Part Number: | SDQ25-101-R |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Arrays, Signal Transformers |
| Available Quantity: | 14810 Pieces |
| Unit Price: | Quote by Email |

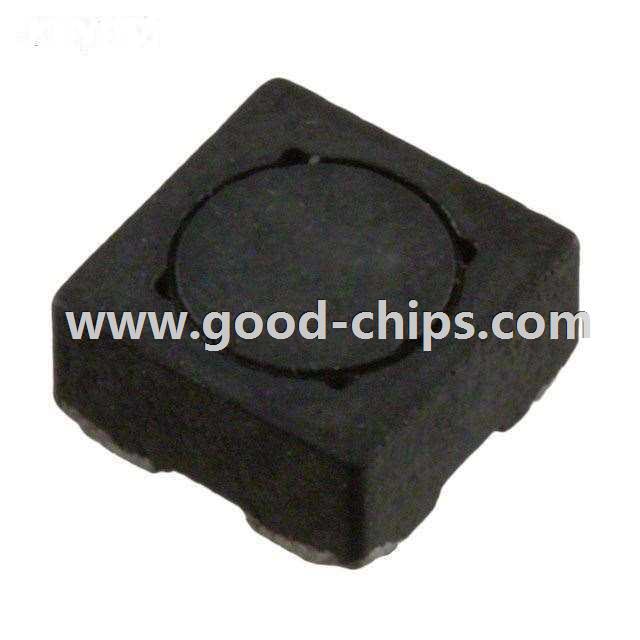

| Description: | Shielded 2 Coil Inductor Array 394.3µH Inductance - Connected in Series 98.57µH Inductance - Connected in Parallel 1 Ohm DC Resistance (DCR) - Parallel 499mA Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SDQ25-101-R Datasheet |
| Internal Part Number | 898-SDQ25-101-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | SEPIC Converter | |
| PCN Assembly/Origin | Multiple Devices 31/Aug/2013 Coiltronics Magnetics Facility 31/Aug/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | SDQ Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Arrays, Signal Transformers | |
| Manufacturer | Eaton | |
| Series | SDQ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Coils | 2 | |
| Inductance - Connected In Series | 394.3µH | |
| Inductance - Connected In Parallel | 98.57µH | |
| Tolerance | ±20% | |
| Current Rating - Parallel | 499mA | |
| Current Rating - Series | 249mA | |
| Current Saturation - Parallel | 405mA | |
| Current Saturation - Series | 203mA | |
| DC Resistance (DCR) - Parallel | 1 Ohm | |
| DC Resistance (DCR) - Series | 4.02 Ohm | |
| Shielding | Shielded | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) | |
| Height | 0.098" (2.50mm) | |
| Standard Package | 2,900 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SDQ25-101-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SDQ25-101-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of SDQ25-101-R is new and unused, you can buy SDQ25-101-R Eaton with us at a very low price and quick delivery.
