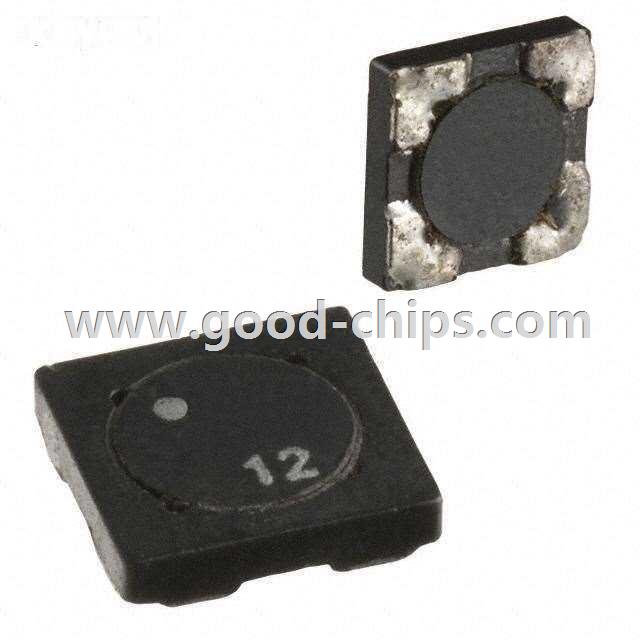

| Manufacturer Part Number: | SDQ12-2R2-R |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Arrays, Signal Transformers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Shielded 2 Coil Inductor Array 9µH Inductance - Connected in Series 2.25µH Inductance - Connected in Parallel 97.7 mOhm DC Resistance (DCR) - Parallel 1.6A Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SDQ12-2R2-R Datasheet |
| Internal Part Number | 898-SDQ12-2R2-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | SEPIC Converter | |
| PCN Assembly/Origin | Multiple Devices 31/Aug/2013 Coiltronics Magnetics Facility 31/Aug/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Inductors, Coils, Chokes | |
| Family | Arrays, Signal Transformers | |
| Manufacturer | Eaton | |
| Series | SDQ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Coils | 2 | |
| Inductance - Connected In Series | 9µH | |
| Inductance - Connected In Parallel | 2.25µH | |
| Tolerance | ±20% | |
| Current Rating - Parallel | 1.6A | |
| Current Rating - Series | 800mA | |
| Current Saturation - Parallel | 2.03A | |
| Current Saturation - Series | 1.01A | |
| DC Resistance (DCR) - Parallel | 97.7 mOhm | |
| DC Resistance (DCR) - Series | 390.8 mOhm | |
| Shielding | Shielded | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) | |
| Height | 0.047" (1.20mm) | |
| Standard Package | 3,800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SDQ12-2R2-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SDQ12-2R2-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of SDQ12-2R2-R is new and unused, you can buy SDQ12-2R2-R Eaton with us at a very low price and quick delivery.
