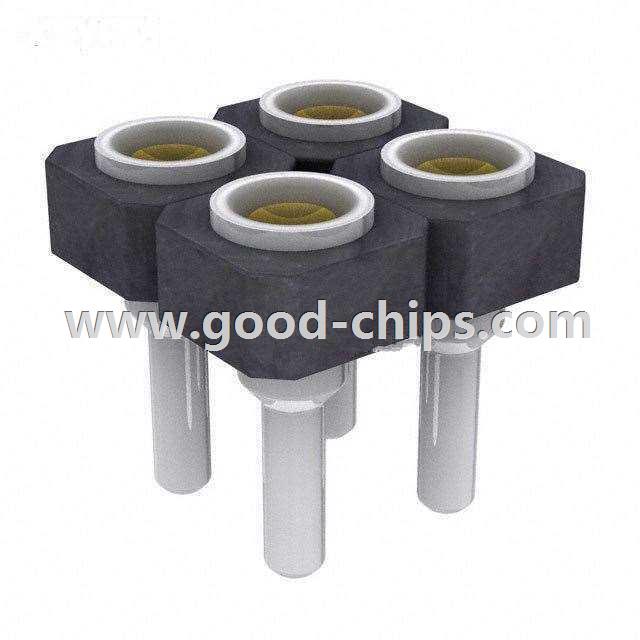

Manufacturer Part Number: | SDL-102-T-12 |
---|---|
Manufacturer: | Samtec Inc. |
Product Category: | Rectangular - Board to Board Connectors - Headers, Receptacles, Female Sockets |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 4 Position Receptacle Connector Gold 0.100" (2.54mm) Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SDL-102-T-12 Datasheet |
Internal Part Number | 898-SDL-102-T-12 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Headers, Receptacles, Female Sockets | |
Manufacturer | Samtec Inc. | |
Series | SDL | |
Packaging | Bulk | |
Part Status | Discontinued | |
Connector Type | Receptacle | |
Number of Positions | 4 | |
Number of Positions Loaded | All | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 2 | |
Row Spacing | 0.100" (2.54mm) | |
Height Stacking (Mating) | - | |
Height Above Board | 0.095" (2.41mm) | |
Mounting Type | Through Hole | |
Termination | Solder | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Features | - | |
Color | Black | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SDL-102-T-12 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SDL-102-T-12 is in stock for immediate shipping now. We are the distributor of Samtec Inc. all series components. The condition of SDL-102-T-12 is new and unused, you can buy SDL-102-T-12 Samtec Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SDL-102-T-12.
