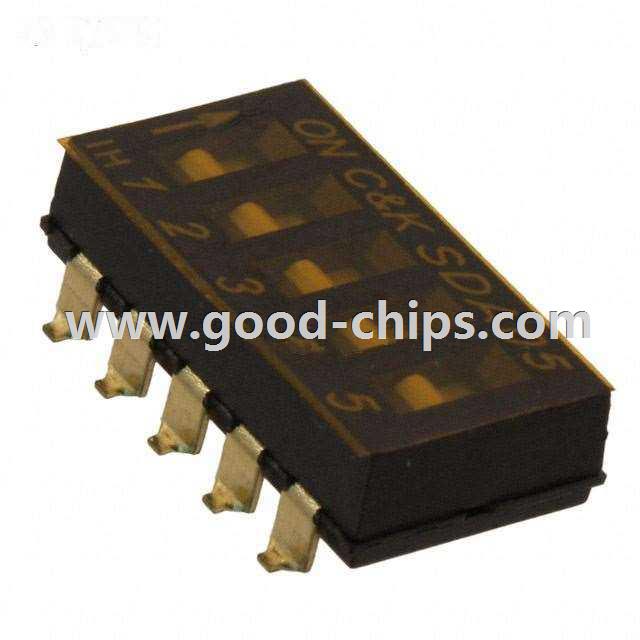

Manufacturer Part Number: | SDA05H0SBR |
---|---|
Manufacturer: | C&K Components |
Product Category: | DIP Switches |
Available Quantity: | 9760 Pieces |
Unit Price: | Quote by Email |
Description: | Dip Switch SPST 5 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SDA05H0SBR Datasheet |
Internal Part Number | 898-SDA05H0SBR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Introduction to Electromechanical Switches Industrial Switches for Safety and Security | |
Featured Product | Industrial Switches – C&K Components | DigiKey | |
Online Catalog | SDA Series | |
Category | Switches | |
Family | DIP Switches | |
Manufacturer | C&K Components | |
Series | SDA | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Circuit | SPST | |
Number of Positions | 5 | |
Current Rating | 25mA | |
Voltage Rating | 24VDC | |
Actuator Type | Slide (Standard) | |
Actuator Level | Flush, Recessed | |
Contact Material | Beryllium Copper | |
Contact Finish | Gold | |
Height Above Board | 0.175" (4.45mm) | |
Mounting Type | Surface Mount | |
Termination Style | Gull Wing | |
Pitch | 0.100" (2.54mm), Full | |
Washable | Yes | |
Features | Tape Seal | |
Body Material | Polyphenylene Sulfide (PPS) | |
Length | 0.578" (14.68mm) | |
Operating Temperature | -40°C ~ 85°C | |
Mechanical Life | 1,000 Cycles | |
Electrical Life | 1,000 Cycles | |
Standard Package | 750 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SDA05H0SBR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SDA05H0SBR is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of SDA05H0SBR is new and unused, you can buy SDA05H0SBR C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SDA05H0SBR.
