Manufacturer Part Number: | SD53-680-R |
---|---|
Manufacturer: | Eaton |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

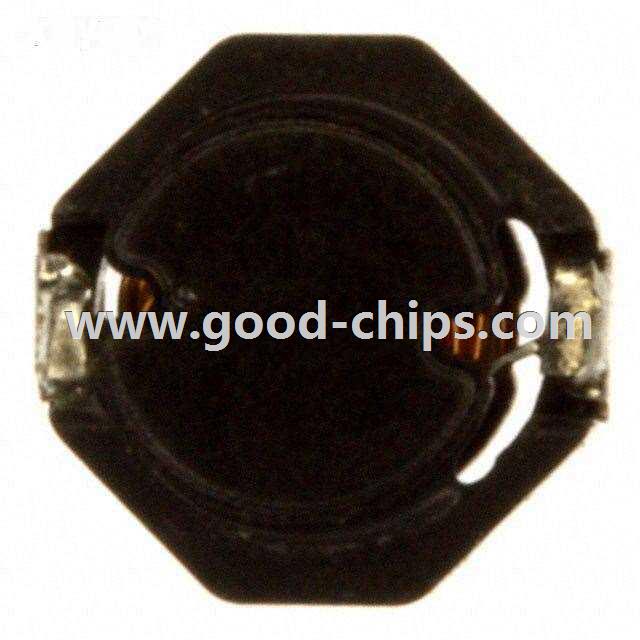

Description: | 68µH Shielded Wirewound Inductor 520mA 525 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SD53-680-R Datasheet |
Internal Part Number | 898-SD53-680-R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Eaton | |
Series | SD53 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 68µH | |
Tolerance | ±20% | |
Current Rating | 520mA | |
Current - Saturation | 580mA | |
Shielding | Shielded | |
DC Resistance (DCR) | 525 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -40°C ~ 125°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.204" L x 0.204" W (5.20mm x 5.20mm) | |
Height - Seated (Max) | 0.118" (3.00mm) | |
Standard Package | 2,600 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SD53-680-R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SD53-680-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of SD53-680-R is new and unused, you can buy SD53-680-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SD53-680-R.
