| Manufacturer Part Number: | SD3220S100S5R0 |
|---|---|
| Manufacturer: | AVX Corporation |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Schottky 100V 5A (DC) Surface Mount SMC (DO-214AB) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SD3220S100S5R0 Datasheet |
| Internal Part Number | 898-SD3220S100S5R0 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Schottky Barrier Rectifier Diode Schottky Diodes | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | AVX Corporation | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 100V | |
| Current - Average Rectified (Io) | 5A (DC) | |
| Voltage - Forward (Vf) (Max) @ If | 850mV @ 5A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 500µA @ 100V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Surface Mount | |

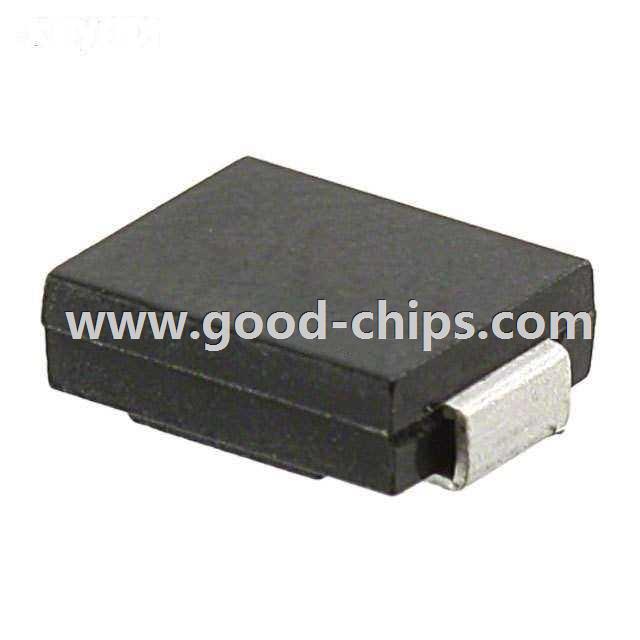

| Package / Case | DO-214AB, SMC | |
| Supplier Device Package | SMC (DO-214AB) | |
| Operating Temperature - Junction | -55°C ~ 125°C | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SD3220S100S5R0 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SD3220S100S5R0 is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of SD3220S100S5R0 is new and unused, you can buy SD3220S100S5R0 AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SD3220S100S5R0.
