| Manufacturer Part Number: | SD25-0836R9UBQ1 |
|---|---|
| Manufacturer: | AVX Corp/Kyocera Corp |
| Product Category: | SAW Filters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DUPLEXER SAW 836MHZ SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SD25-0836R9UBQ1 Datasheet |
| Internal Part Number | 898-SD25-0836R9UBQ1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Filters | |
| Family | SAW Filters | |
| Manufacturer | AVX Corp/Kyocera Corp | |
| Series | SD25, Kyocera | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency | 836MHz Center | |
| Bandwidth | 25MHz | |
| Filter Type | Band Pass | |
| Insertion Loss | 2.5dB | |
| Ratings | - | |
| Applications | UMTS | |

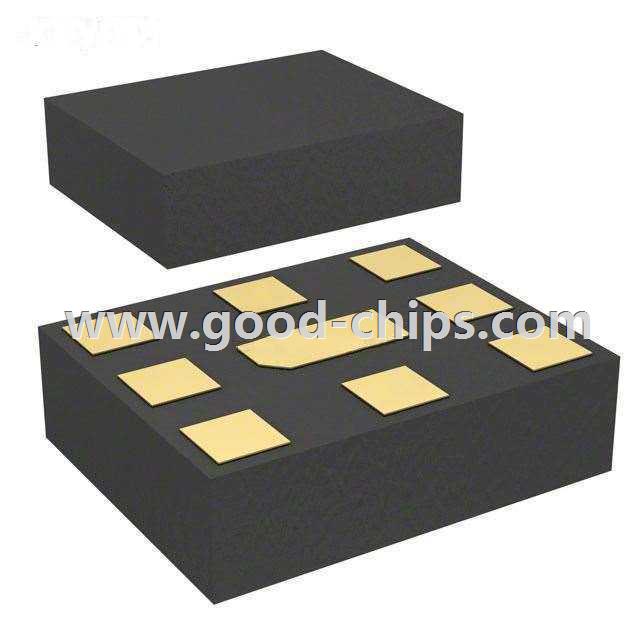

| Package / Case | 9-SMD (No Lead) | |
| Mounting Type | Surface Mount | |
| Height (Max) | 0.028" (0.70mm) | |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SD25-0836R9UBQ1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SD25-0836R9UBQ1 is in stock for immediate shipping now. We are the distributor of AVX Corp/Kyocera Corp all series components. The condition of SD25-0836R9UBQ1 is new and unused, you can buy SD25-0836R9UBQ1 AVX Corp/Kyocera Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SD25-0836R9UBQ1.
