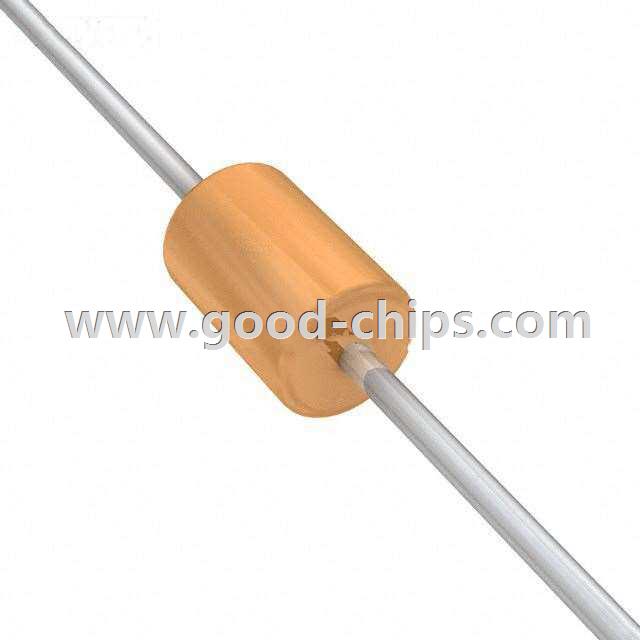

Manufacturer Part Number: | SD103C-TR |
---|---|
Manufacturer: | Vishay BC Components |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 29010 Pieces |
Unit Price: | Quote by Email |
Description: | DIODE SCHOTTKY 20V DO35 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SD103C-TR Datasheet |
Internal Part Number | 898-SD103C-TR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Schottky Diode | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | Vishay Semiconductor Diodes Division | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Diode Type | Schottky | |
Voltage - DC Reverse (Vr) (Max) | 20V | |
Current - Average Rectified (Io) | - | |
Voltage - Forward (Vf) (Max) @ If | 600mV @ 200mA | |
Speed | - | |
Reverse Recovery Time (trr) | 10ns | |
Current - Reverse Leakage @ Vr | 5µA @ 10V | |
Capacitance @ Vr, F | 50pF @ 0V, 1MHz | |
Mounting Type | Through Hole | |
Package / Case | DO-204AH, DO-35, Axial | |
Supplier Device Package | DO-35 | |
Operating Temperature - Junction | 125°C (Max) | |
Standard Package | 10,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SD103C-TR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SD103C-TR is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of SD103C-TR is new and unused, you can buy SD103C-TR Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SD103C-TR.
