Manufacturer Part Number: | SD101201 |
---|---|
Manufacturer: | Cherry |
Product Category: | Magnetic Sensors - Position, Proximity, Speed (Modules) |
Available Quantity: | 9057 Pieces |
Unit Price: | Quote by Email |

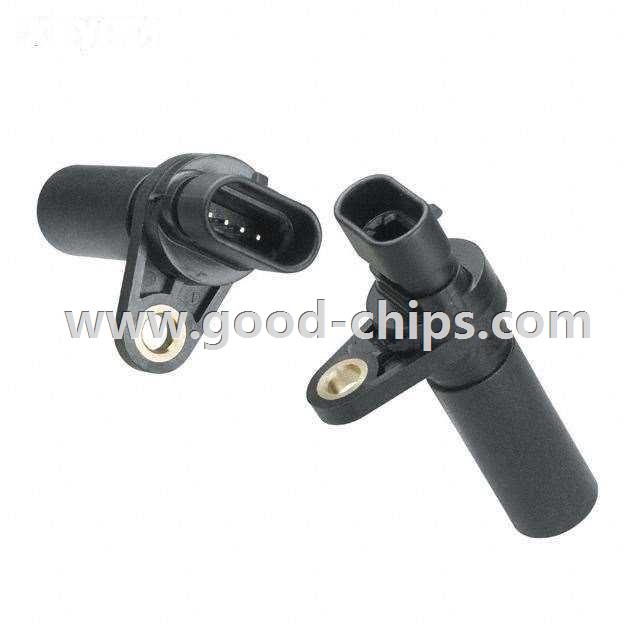

Description: | Magnetic Hall Effect Sensor Ferrous Metals, Gear Tooth Digital Connector Flange Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SD101201 Datasheet |
Internal Part Number | 898-SD101201 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | SD1012 Series | |
Category | Sensors, Transducers | |
Family | Magnetic Sensors - Position, Proximity, Speed (Modules) | |
Manufacturer | Cherry | |
Series | - | |
Part Status | Active | |
Output Type | Digital | |
Type | Hall Effect Sensor | |
Actuator Material | Ferrous Metals, Gear Tooth | |
Termination Style | Connector | |
Frequency | 15kHz | |
Voltage - Supply | 4.75 V ~ 24 V | |
Must Operate | - | |
Must Release | - | |
Operating Temperature | -40°C ~ 125°C (TA) | |
Package / Case | Flange Mount | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SD101201 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SD101201 is in stock for immediate shipping now. We are the distributor of Cherry all series components. The condition of SD101201 is new and unused, you can buy SD101201 Cherry with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SD101201.
