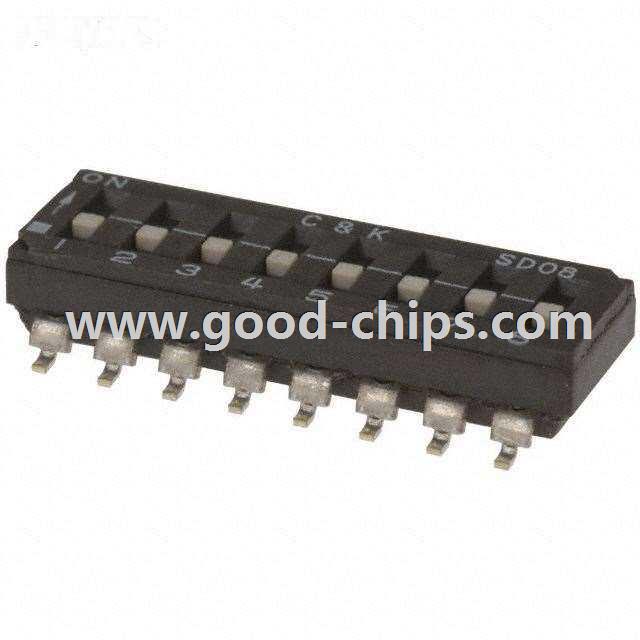

| Manufacturer Part Number: | SD08H0SBD |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | DIP Switches |
| Available Quantity: | 9275 Pieces |
| Unit Price: | Quote by Email |
| Description: | Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 100mA 25VDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SD08H0SBD Datasheet |
| Internal Part Number | 898-SD08H0SBD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Introduction to Electromechanical Switches | |
| 3D Model | SD08H0S(D,R).stp SD08H0S(D,R).pdf | |
| Online Catalog | SD Series | |
| Category | Switches | |
| Family | DIP Switches | |
| Manufacturer | C&K Components | |
| Series | SD | |
| Packaging | Tube | |
| Part Status | Active | |
| Circuit | SPST | |
| Number of Positions | 8 | |
| Current Rating | 100mA | |
| Voltage Rating | 25VDC | |
| Actuator Type | Slide (Standard) | |
| Actuator Level | Flush, Recessed | |
| Contact Material | Beryllium Copper | |
| Contact Finish | Gold | |
| Height Above Board | 0.155" (3.94mm) | |
| Mounting Type | Surface Mount | |
| Termination Style | Gull Wing | |
| Pitch | 0.100" (2.54mm), Full | |
| Washable | No | |
| Features | - | |
| Body Material | Polyphthalamide (PPA) | |
| Length | 0.858" (21.80mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Mechanical Life | 2,000 Cycles | |
| Electrical Life | 2,000 Cycles | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SD08H0SBD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SD08H0SBD is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of SD08H0SBD is new and unused, you can buy SD08H0SBD C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SD08H0SBD.
