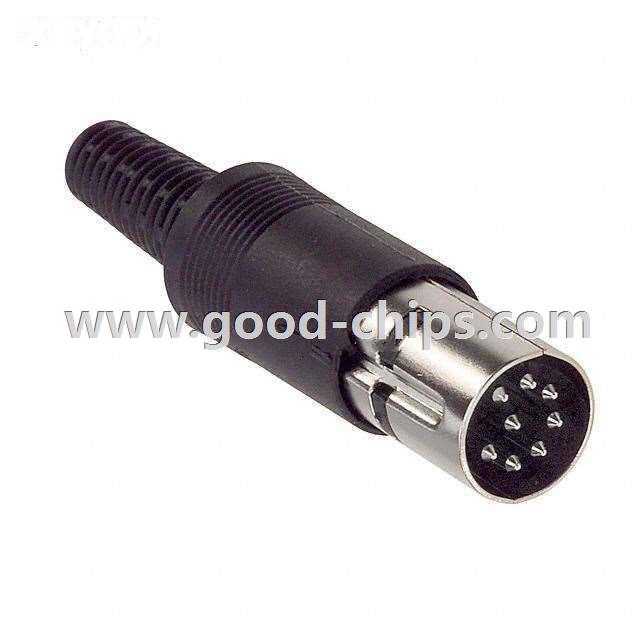

Manufacturer Part Number: | SD-80 |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | Circular Connectors |
Available Quantity: | 12088 Pieces |
Unit Price: | Quote by Email |
Description: | 8 Position Circular Connector Plug, Male Pins Solder Nickel |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SD-80 Datasheet |
Internal Part Number | 898-SD-80 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | SD-x0 Cert of Compliance | |
3D Model | SD-80 | |
Online Catalog | SD Series | |
Category | Connectors, Interconnects | |
Family | Circular Connectors | |
Manufacturer | CUI Inc. | |
Series | SD | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Plug, Male Pins | |
Number of Positions | 8 | |
Shell Size - Insert | DIN (270 Degree) | |
Shell Size, MIL | - | |
Mounting Type | Free Hanging (In-Line) | |
Termination | Solder | |
Fastening Type | Push-Pull | |
Orientation | Keyed | |
Ingress Protection | - | |
Shell Material, Finish | Steel, Nickel Plated | |
Contact Finish | Nickel | |
Features | - | |
Contact Finish Thickness | - | |
Current Rating | 1A, 2A | |
Voltage - Rated | 100VAC, 12VDC | |
Operating Temperature | -5°C ~ 110°C | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SD-80 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SD-80 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of SD-80 is new and unused, you can buy SD-80 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SD-80.
