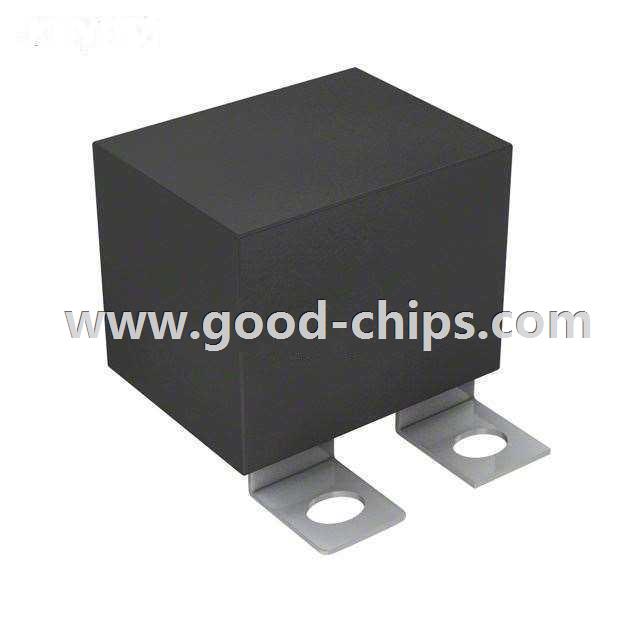

| Manufacturer Part Number: | SCD684K162A3Z25-F |
|---|---|
| Manufacturer: | Cornell Dubilier Electronics (CDE) |
| Product Category: | Film Capacitors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 0.68µF Film Capacitor 630V 1600V (1.6kV) Polypropylene (PP), Metallized Rectangular Box 1.776" L x 1.370" W (45.10mm x 34.80mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SCD684K162A3Z25-F Datasheet |
| Internal Part Number | 898-SCD684K162A3Z25-F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Capacitors | |
| Family | Film Capacitors | |
| Manufacturer | Cornell Dubilier Electronics (CDE) | |
| Series | SCD | |
| Packaging | Bulk | |
| Part Status | Active | |
| Capacitance | 0.68µF | |
| Tolerance | ±10% | |
| Voltage Rating - AC | 630V | |
| Voltage Rating - DC | 1600V (1.6kV) | |
| Dielectric Material | Polypropylene (PP), Metallized | |
| ESR (Equivalent Series Resistance) | 7 mOhm | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Chassis Mount | |
| Package / Case | Rectangular Box | |
| Size / Dimension | 1.776" L x 1.370" W (45.10mm x 34.80mm) | |
| Height - Seated (Max) | 1.402" (35.60mm) | |
| Termination | Screw Terminals | |
| Lead Spacing | 1.000" (25.40mm) | |
| Applications | Snubber | |
| Features | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SCD684K162A3Z25-F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SCD684K162A3Z25-F is in stock for immediate shipping now. We are the distributor of Cornell Dubilier Electronics (CDE) all series components. The condition of SCD684K162A3Z25-F is new and unused, you can buy SCD684K162A3Z25-F Cornell Dubilier Electronics (CDE) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SCD684K162A3Z25-F.
