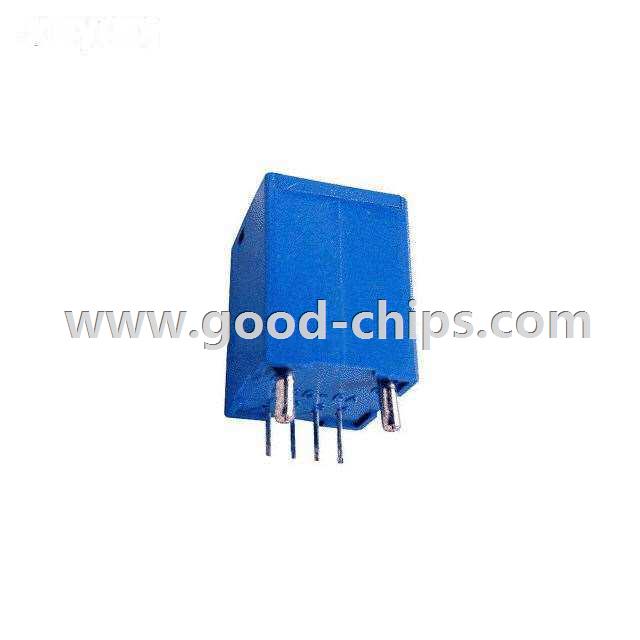

SCD10PUN

SCD10PUN
Manufacturer Part Number:SCD10PUN
Manufacturer:
Product Category:Current Transducers
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:Current Sensor 10A 1 Channel Hall Effect, Open Loop Unidirectional
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: SCD10PUN Datasheet
SCD10PUN´s Parameters
Internal Part Number898-SCD10PUN
Manufacturer Lead time6-8 weeks
지위New & Unused, Original Sealed
PCN Obsolescence/ EOLSCD Series 19/Sept/2011
CategorySensors, Transducers
FamilyCurrent Transducers
ManufacturerCUI Inc.
SeriesSCD
PackagingBulk
Part StatusObsolete
For MeasuringDC
Sensor TypeHall Effect, Open Loop
Current - Sensing10A
Number of Channels1
OutputRatiometric, Voltage
Sensitivity-
Frequency50Hz/60Hz
Linearity±0.5%
Accuracy-
Voltage - Supply5V
Response Time7µs
Current - Supply (Max)10mA
Operating Temperature-10°C ~ 75°C
PolarizationUnidirectional
Mounting Type-
Package / Case-
Standard Package 100
무게0.001 KG
신청Email for details
Replacement PartSCD10PUN
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

SCD10PUN is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of SCD10PUN is new and unused, you can buy SCD10PUN CUI Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for SCD10PUN.
