Manufacturer Part Number: | SC284PULTRC |
---|---|
Manufacturer: | Semtech Corporation |
Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Buck Switching Regulator IC Positive Programmable 1V 2 Output 2A 20-UFQFN Exposed Pad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SC284PULTRC Datasheet |
Internal Part Number | 898-SC284PULTRC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
Manufacturer | Semtech Corporation | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Function | Step-Down | |
Output Configuration | Positive | |
Topology | Buck | |
Output Type | Programmable | |
Number of Outputs | 2 | |
Voltage - Input (Min) | 2.75V | |
Voltage - Input (Max) | 5.5V | |
Voltage - Output (Min/Fixed) | 1V | |
Voltage - Output (Max) | 3.3V | |
Current - Output | 2A | |
Frequency - Switching | 2.5MHz | |
Synchronous Rectifier | Yes | |
Operating Temperature | -40°C ~ 125°C (TA) | |
Mounting Type | Surface Mount | |

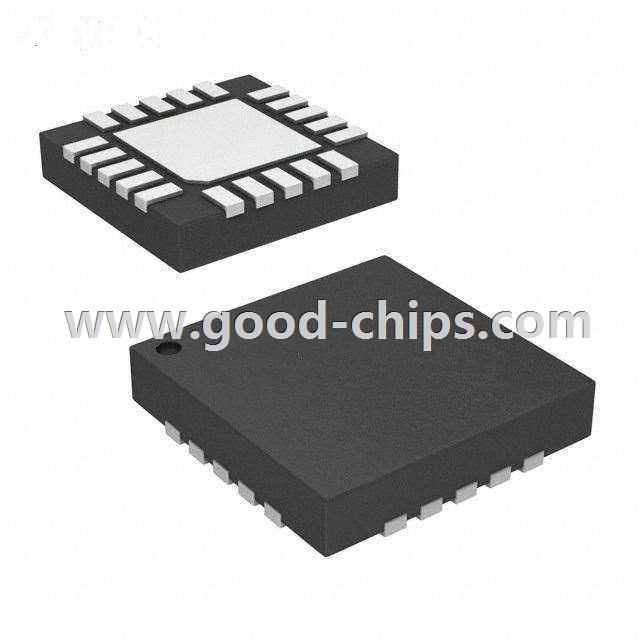

Package / Case | 20-UFQFN Exposed Pad | |
Supplier Device Package | 20-MLPQ-UT (3x3) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SC284PULTRC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SC284PULTRC is in stock for immediate shipping now. We are the distributor of Semtech Corporation all series components. The condition of SC284PULTRC is new and unused, you can buy SC284PULTRC Semtech Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SC284PULTRC.
