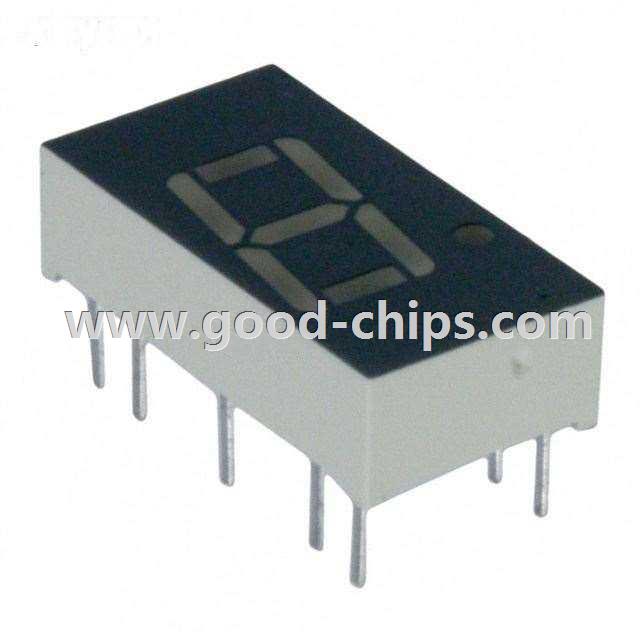

| Manufacturer Part Number: | SC04-11GWA |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | Display Modules - LED Character and Numeric |
| Available Quantity: | 9528 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LED Display Module Green 7-Segment 1 Character Common Cathode 2.2V 20mA 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) 14-DIP (0.295", 7.50mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SC04-11GWA Datasheet |
| Internal Part Number | 898-SC04-11GWA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | Sx04-11x.sldprt Sx04-11x.pro Sx04-11x.igs Sx04-11x.stp | |
| Online Catalog | 0.3in 1-Digit 7-Segment Display | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Character and Numeric | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Characters | 1 | |
| Size / Dimension | 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) | |
| Digit/Alpha Size | 0.40" (10.16mm) | |
| Display Type | 7-Segment | |
| Common Pin | Common Cathode | |
| Color | Green | |
| Voltage - Forward (Vf) (Typ) | 2.2V | |
| Current - Test | 20mA | |
| Millicandela Rating | 8.6mcd | |
| Wavelength - Peak | 565nm | |
| Power Dissipation (Max) | 62.5mW | |
| Package / Case | 14-DIP (0.295", 7.50mm) | |
| Standard Package | 27 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SC04-11GWA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SC04-11GWA is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of SC04-11GWA is new and unused, you can buy SC04-11GWA Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SC04-11GWA.
