Manufacturer Part Number: | SC009221 |
---|---|
Manufacturer: | E Ink Corporation |
Product Category: | Display Modules - LCD, OLED Character and Numeric |
Available Quantity: | 9437 Pieces |
Unit Price: | Quote by Email |

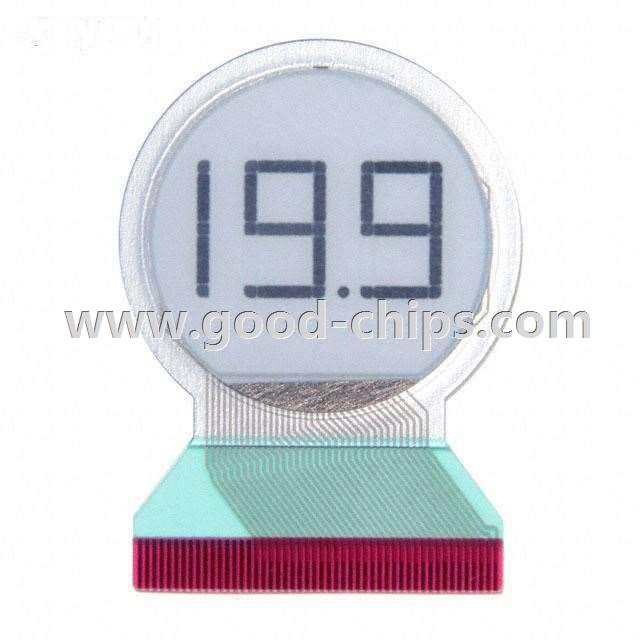

Description: | Character LCD Display Module Reflective E-INK Segmented Display Without Backlight 37.90mm x 27.65mm x 0.59mm |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SC009221 Datasheet |
Internal Part Number | 898-SC009221 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | E Ink Quick Start Kit | |
Online Catalog | Segmented Displays | |
Category | Optoelectronics | |
Family | Display Modules - LCD, OLED Character and Numeric | |
Manufacturer | E Ink Corporation | |
Series | E Ink | |
Part Status | Active | |
Number of Characters | 3 | |
Display Format | 3 x 1 | |
Character Format | - | |
Display Type | E-INK Segmented Display | |
Display Mode | Reflective | |
Character Size | - | |
Outline L x W x H | 37.90mm x 27.65mm x 0.59mm | |
Viewing Area | - | |
Backlight | Without Backlight | |
Voltage - Supply | 5 V ~ 15 V | |
Dot Size | - | |
Interface | - | |
Operating Temperature | - | |
Text Color | Black | |
Background Color | White | |
Standard Package | 80 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SC009221 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SC009221 is in stock for immediate shipping now. We are the distributor of E Ink Corporation all series components. The condition of SC009221 is new and unused, you can buy SC009221 E Ink Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SC009221.
