| Manufacturer Part Number: | SC004221 |
|---|---|
| Manufacturer: | E Ink Corporation |
| Product Category: | Display Modules - LCD, OLED Character and Numeric |
| Available Quantity: | 9351 Pieces |
| Unit Price: | Quote by Email |

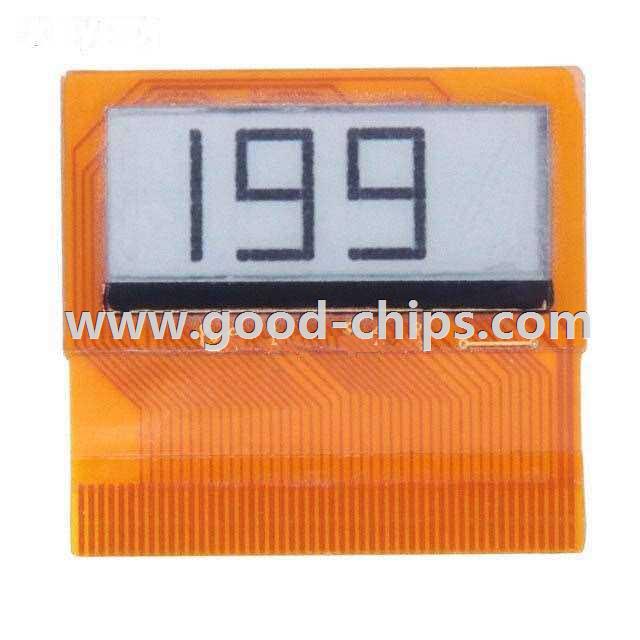

| Description: | Character LCD Display Module Reflective E-INK Segmented Display Without Backlight 24.25mm x 26.07mm x 0.59mm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SC004221 Datasheet |
| Internal Part Number | 898-SC004221 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Segmented Displays | |
| Category | Optoelectronics | |
| Family | Display Modules - LCD, OLED Character and Numeric | |
| Manufacturer | E Ink Corporation | |
| Series | E Ink | |
| Part Status | Active | |
| Number of Characters | 3 | |
| Display Format | 3 x 1 | |
| Character Format | - | |
| Display Type | E-INK Segmented Display | |
| Display Mode | Reflective | |
| Character Size | - | |
| Outline L x W x H | 24.25mm x 26.07mm x 0.59mm | |
| Viewing Area | 10.25mm L x 21.07mm W | |
| Backlight | Without Backlight | |
| Voltage - Supply | 5 V ~ 15 V | |
| Dot Size | - | |
| Interface | - | |
| Operating Temperature | - | |
| Text Color | Black | |
| Background Color | White | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SC004221 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SC004221 is in stock for immediate shipping now. We are the distributor of E Ink Corporation all series components. The condition of SC004221 is new and unused, you can buy SC004221 E Ink Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SC004221.
